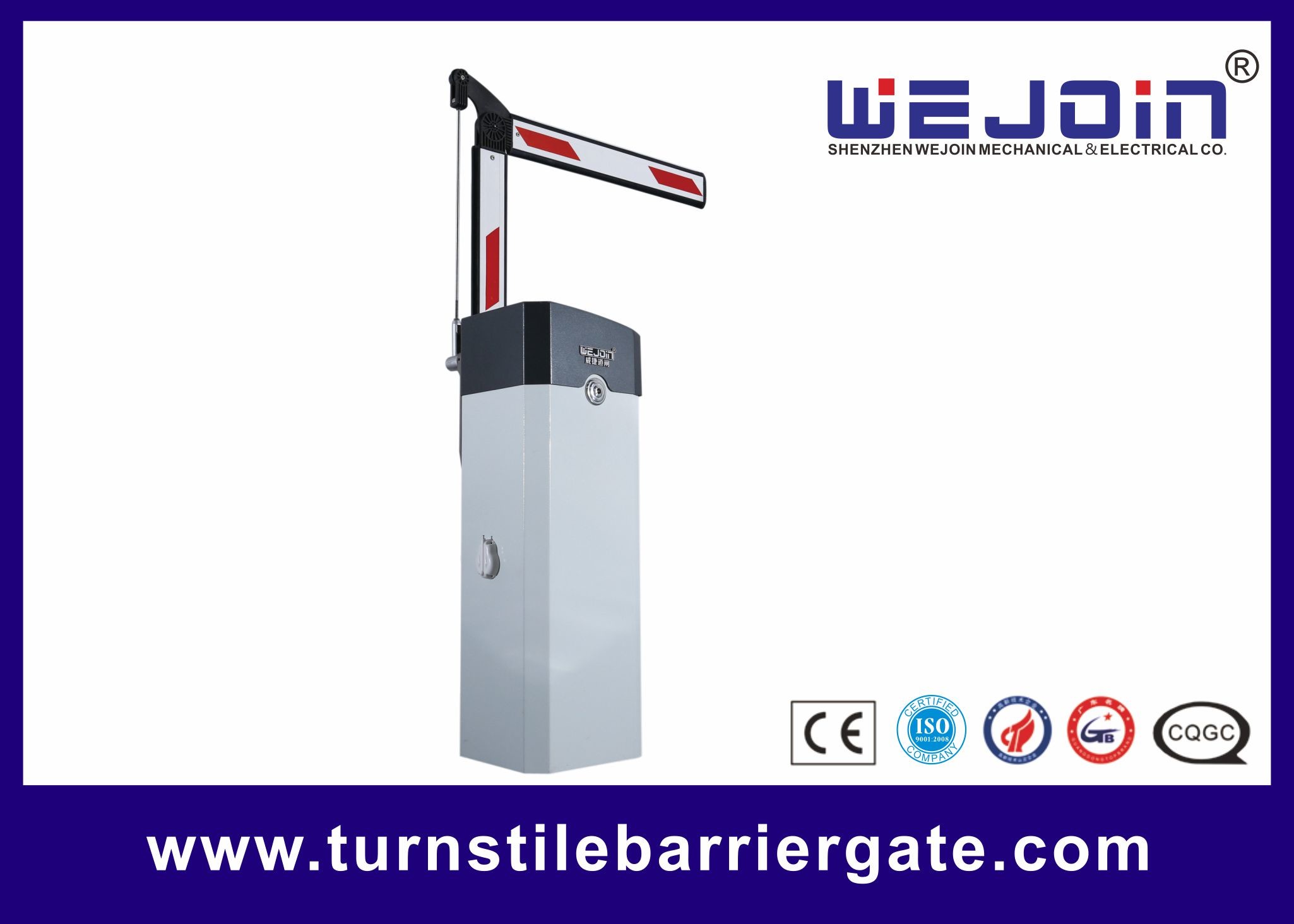

Balanced Boom Intelligent Toll Gate / Vehicle Barrier System Ac 220v , Ac 110v
Quick Detail
Name: Bi-directional Barrier Gate
Application : Parking System
Speed:1.5/3,3/6 second
Feature: Manual release
Rated Power: 80W
Certificate:CE, ISO,
Net Weight:50KG
Voltage:AC220V, AC110V
Functions & Features:
1. For one barrier, you can have two installed direction (both side of the shaft can install the arm holder, just need to change the position of the arm holder), see the Chinese Manual in the attachment, we will have English Manual soon.
2. For one barrier, you can have two speed (no need to change the motor), for example, if you want faster barrier, you can choose 1.5s/3s motor, and you can also set up speed is 1.5s, and down speed is 3s, or both up and down speed is 1.5s or 3s; if you want slower barrier, you can choose 3s/6s motor, the same function as 1.5s/3s motor.
3. This barrier uses new designed control board, can have multiple functions.
4. The motor coil use copper wire, the working life of the motor will be much longer.
5. You can use our standard barrier housing, or we can make the special designed barrier housing for you.
Applications:
Barrier Gate with rubber boom uses the fourth generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
Specifications
| Model | WJDZ820S |
| Working Temperature | -30℃～+60℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 50kgs |
| Speed | 1.5/3S,3/6S |
| Max boom length | 4 meters |
Why to choose WEJOIN Barrier Gate with rubber on boom?
1. Barrier Gate with rubber on boom adopts the latest mold casting design, without clutch device. Its machine core adopts connecting rod structure mainly comprised with worm wheel, worm and crank arm. The barrier gate runs stably, and is conveniently maintained.
2. Barrier Gate with rubber boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles.
4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 3000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
