Entry Exit Road Barrier Gate
Features Gallery Product Description Request A Quote
Features
Specifications
Motor Material: Die-casting Aluminum Alloy
CE Aprroval: YES
Boom Type: Swing Arm
Automatic Gate: Yes
Auto-reverse: Yes
Operation Time: 1s,1.8s,3s,6s
Highlight:

parking lot arm gate

,

car park barriers

Basic Infomation
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJDZ101
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 3-7days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Product Description

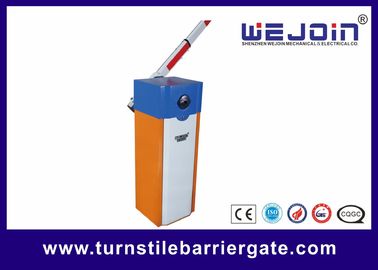

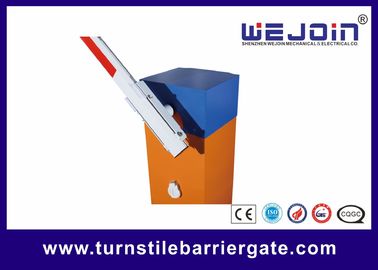

High Duty Entry Exit Car Parking Road Barrier Gate For Access Control System



Fetures:

  • Machine core with compression spring, effectively avoids the accidents caused by spring broken.
  • Die-casting aluminum alloy motor, precision and good at thermal radiating.
  • Motor cooling fan, solving the problem of heat-protection
  • Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
  • reversing on obstacle
  • Auto-closing
  • Support the infrared photocell for anti-bumping(optional)
  • Support for the external and internal vehicle loop detector
  • traffic light interface
  • wire control(switch signal)/remote control(418Hz)
  • RS485 communicational module to realize the intelligent management for the passing
Model Item 101-11 101-13 101-16
Running time 1sec 3 sec 6sec
Max boom length 3m 4.5m 6m
Boom dimension(w*h) 40*80mm 45*100mm
Boom weight 3kg 4.5kg 6kg
Voltage 220V±10%, 110V±10%
Frequency 50/60 Hz
Motor voltage 220V
power 80W
Working temperature -35centigrade +75centigrade
Protection grade IP44
