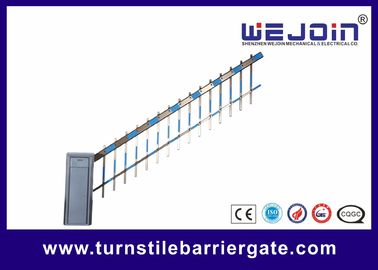

Traffic Commerrcial Car Barrier Gate , Vehicle Barrier Gates With Fence Boom
Independent designed and developed by WEJOIN,commercial variable frequency barrier has functions as following:
1.New deceleration device,using CNC comprehensive precision process;reducing notice,preventing oil spills,better working,more convenient maintenance.
2.Cranks of main power output,use cast steel,swing crank uses strengthen design,the working life can be 8 million times during normal maintenance.Daily working times(non-stop) can be over 20000.
3.The motor well adapts to high and low temperature(-35℃~85℃)
4.New digital limit technology,free adjusting,precise control;Buffer and slow down when arem goes to limit position,working is more stably.
5.TCP/IP online inerface(optional).
6.3 years warranty for mechanism.
7.Power supply control,voltage range is wide.
8.Menu type control panel,convenient to choose working speed,working temperature,counting,auto-closing time,up angle,RS485 communication,sensibility of reversing on obstacle,fault code and etc.Operating and maintenance is more convenient.
9.DC24V brushless motor, with stable and reliable worm gear and planetary reduction transmission structure, large torque, and wear resistance.
Product Parameter
Working temperature:35℃~85℃
Power supply:AC 220V/110V±10% 50/60HZ
Power consumption: 300W
Relative humidity: ≤90%
Remote control distance:≥30m
Insulation grate: F
Parameter choose: direction,length, boom style
Operation Time Table
| Boom type(s) | Open/Close speed(s) | Time from open to chose(s) |
| Big type arm ≥6 | 2.5 | 4.5 |
| Big type arm 4.5-6 | 1.8 | 3.8 |
| Middle type arm 4-4.5 | 1.5 | 3.3 |
| Middle type arm 3.5 | 1.2 | 2 |
| Middle type arm 3.5 | 0.9 | 1.8 |
Housing dimension
