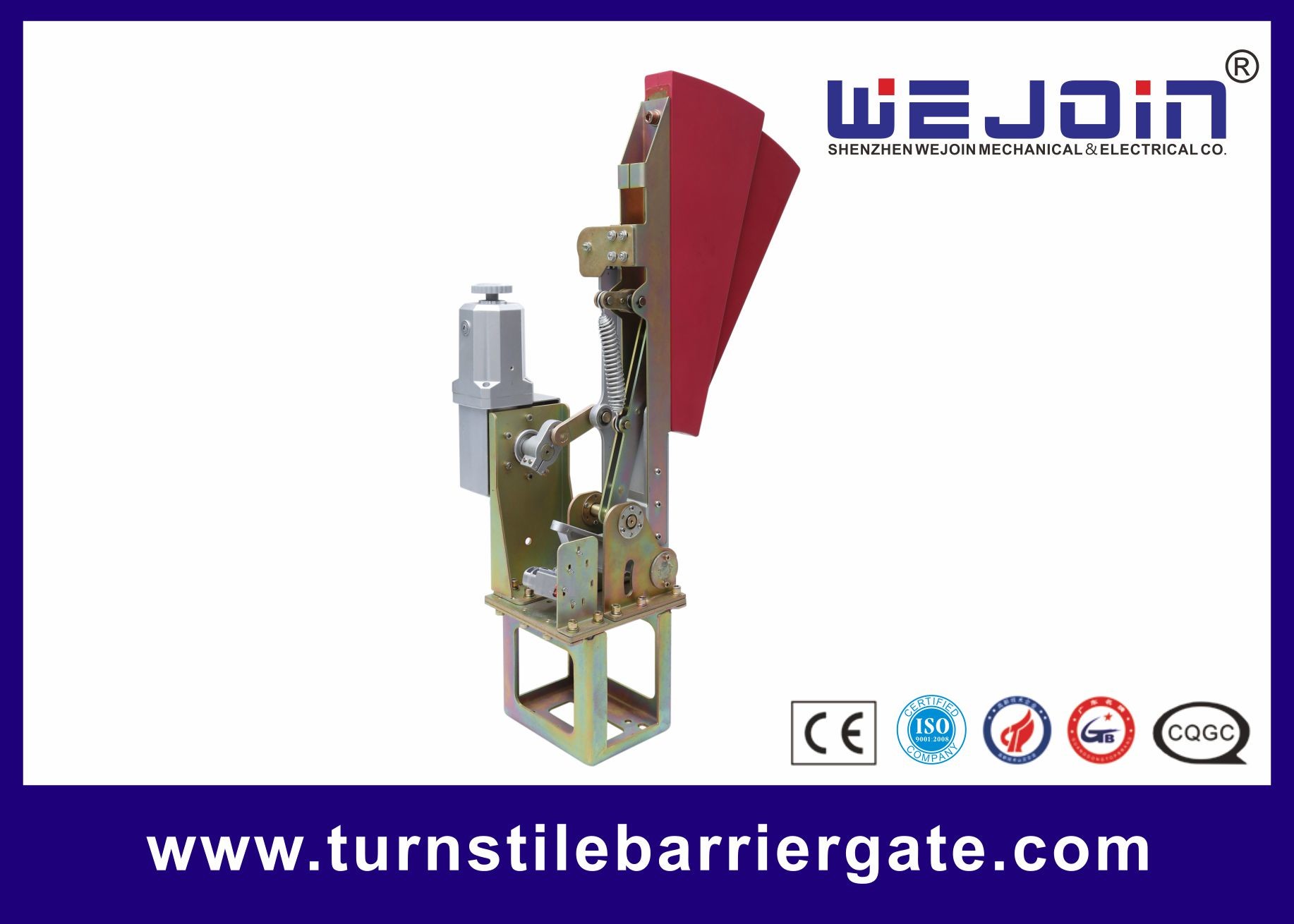

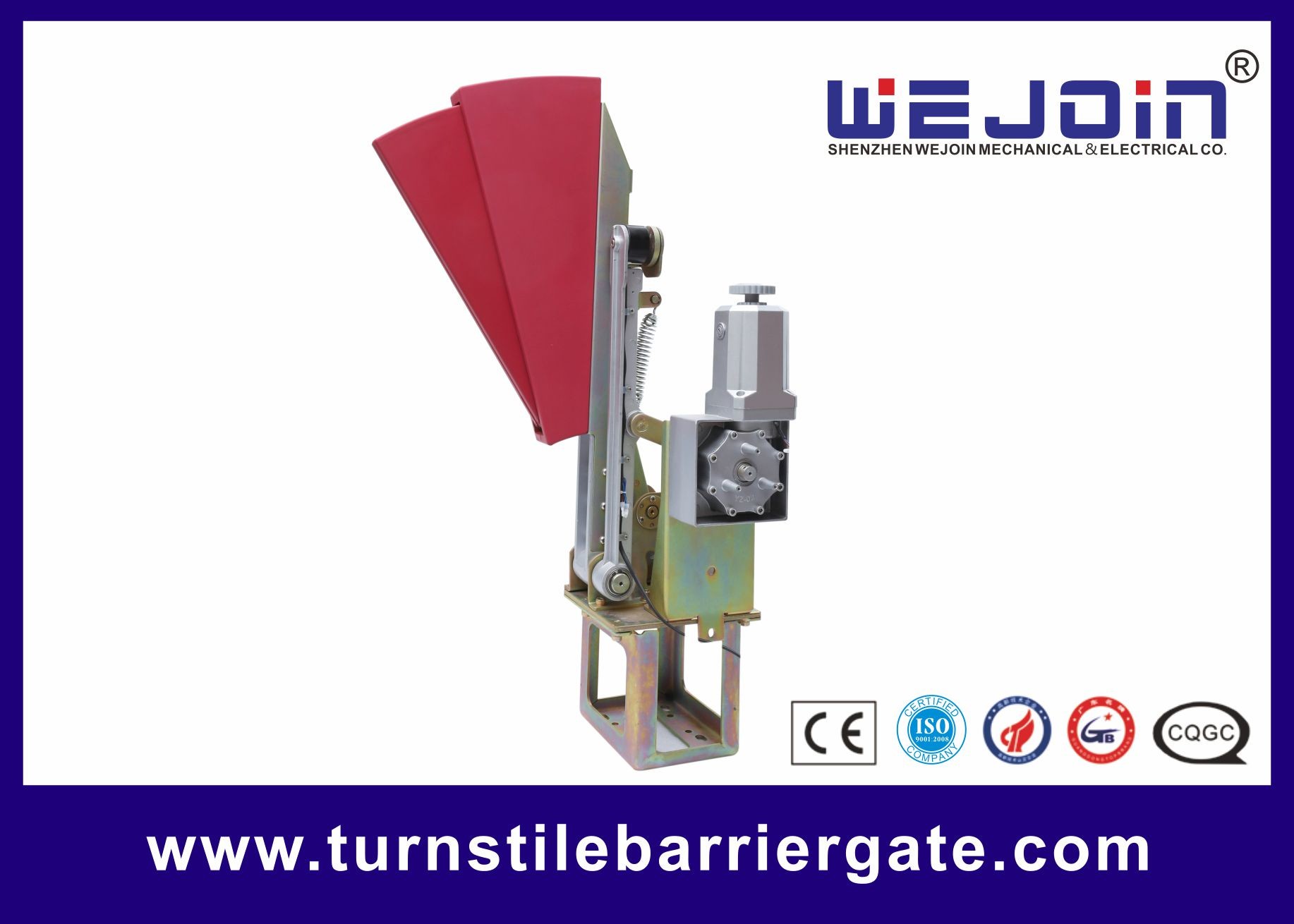

Widen Lane SS Automatic Turnstile Security Systems Electro - Mechanical Design
Flap Barrier Gate Function:
1. With function of self-examine and alarm, it is convenient for maintenance and use.
2. Be able to program running status by the small keyboard in the main board
3. Flap door will stop move when it is being blocked, which prevent pedestrians from being nipped and from
hurt.
4. Light and sound alarm is generated when the illegal invasion and the tail followed.
5. Arms are automatically locked until opening signal is received.
6. Arms synchronization (adjustable)
7. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.(default time is 10sec.)
8. Automatically open the gate when power off and automatically close when power on.
9. Several readers devices are attachable.(IC, ID access control, fingerprint access control, barcode ticket access control, facial identification access control, time attendance machine est.)
10. One direction or bi-direction is optional.
11. It can be directly controlled and managed by remote control.
Flap Barrier Gate Products Series:
|
Model |
WJTY201 |
WJTY301 |
WJTY311 |
|
Material of Housing |
304 Stainless Steel |
||
|
Material of Flap Door |
Organic Glass, Resin, or PVC |
||
|
Dimension of housing |
1200*270*1000 |
1450*315*1020 |
1400*305*1020 |
|
Thickness of housing |
1.5mm |
||
|
Max Width of Passage |
600 |
900 |
900 |
|
Net weight |
70kg |
140 kg |
85 kg |
|
Normal Life Span |
3 millions times |
||
|
Communication Interface |
Standard RS485(distance less than 1200 meters) |
||
|
Transit speed |
30-40 persons/min |
||
|
Power supply |
220V±10%, 110± 10% |
||
|
Frequency |
50/60HZ |
||
|
Working voltage of motor |
DC24V |
||
|
Time for opening or closing |
1s |
||
|
Starting time after power on |
3s |
||
|
Input interface |
Dry contact signal or +12Vor pulse signal with width more than |
||
|
Transit speed |
25~32 persons/min |
||
|
Working temperature |
-10°C~50°C |
||
|
Working environment |
Indoor / Outdoor (Shelter) |
||
|
Relative humidity |
≤95%, no condensation |
||
Flap Barrier Gate Data:
|
Model |
WJTY311 |
|
Cabinet dimension |
1715mm(L)×315mm(W)×1020mm(H) |
|
Stretching-out flap length |
440mm |
|
The max lane width |
900mm |
|
Cabinet material |
cold rolled steel & aluminum alloy |
|
Power supply |
AC220V±15%, AC110V±15% 50/60Hz |
|
Motor voltage |
DC24V (brush motor) |
|
Access device input voltage |
dry contact |
|
Max flow rate |
30~40 people per minute |
|
Flap opening/closing time |
0.5s ~ 1s |
|
reset time when power on |
2s |
|
protection grade |
IP32 |
|
working environment |
outdoors (with shelter) and indoors. |
|
working temperature |
-25°C ~ +50°C |
