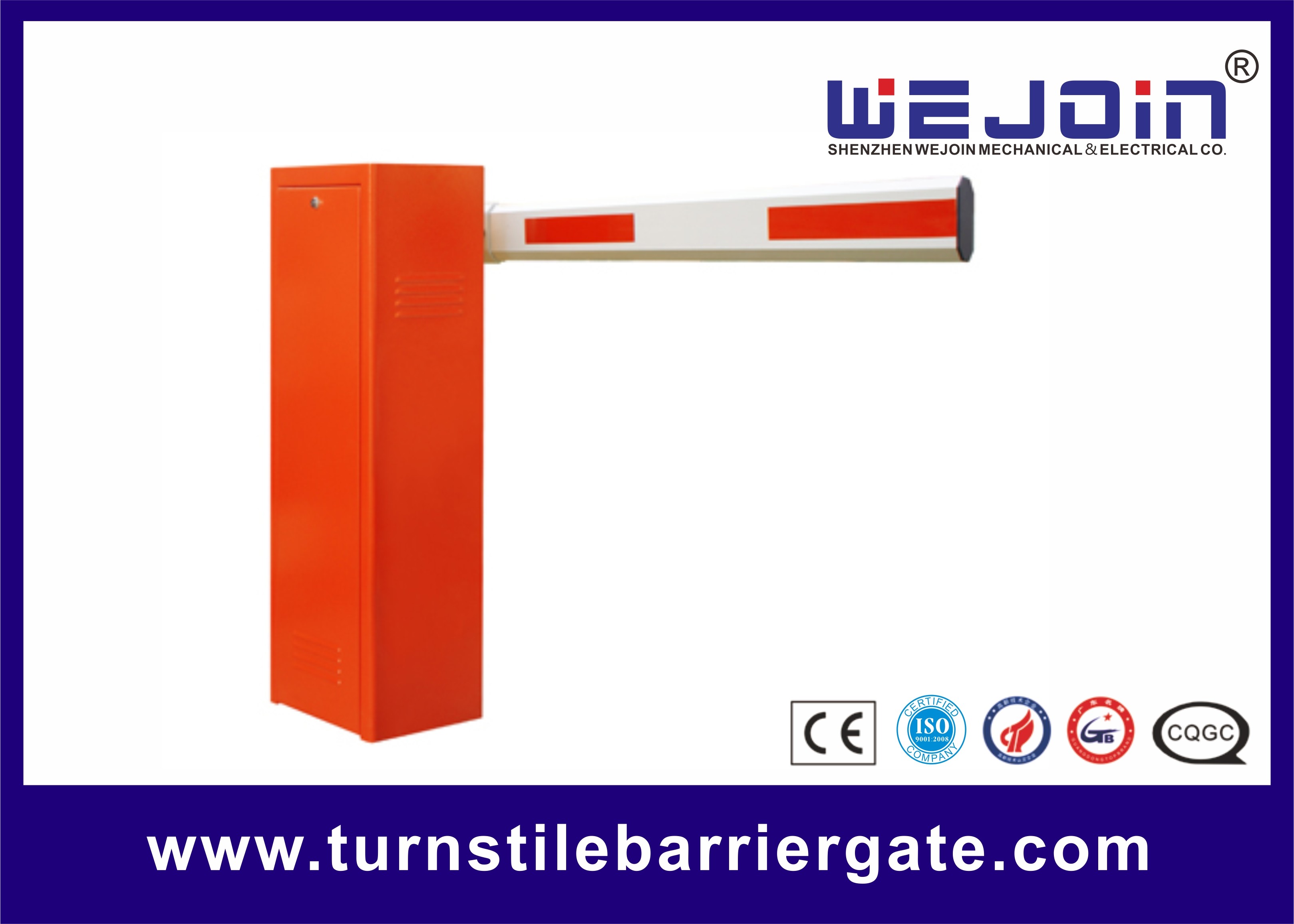

110v/220v Toll Gate with RS485 Converter for Parking System
Function & Features:
1.Advanced manual release
2.Boom can rise and fall on left/right sides by setting on the same machine
3.No need to change the balance spring when changing the booms shorter than 6 meters
4.Adopt the 3rd generation WEJOIN machine core
5.Support the INFRARED PHOTOCELL for anti-bumping function (optional)
6.Support the external and internal VEHIVLE LOOP DETECTOR (optional)
7.Auto warming up ,suitable for cold environment.
8.Auto closing

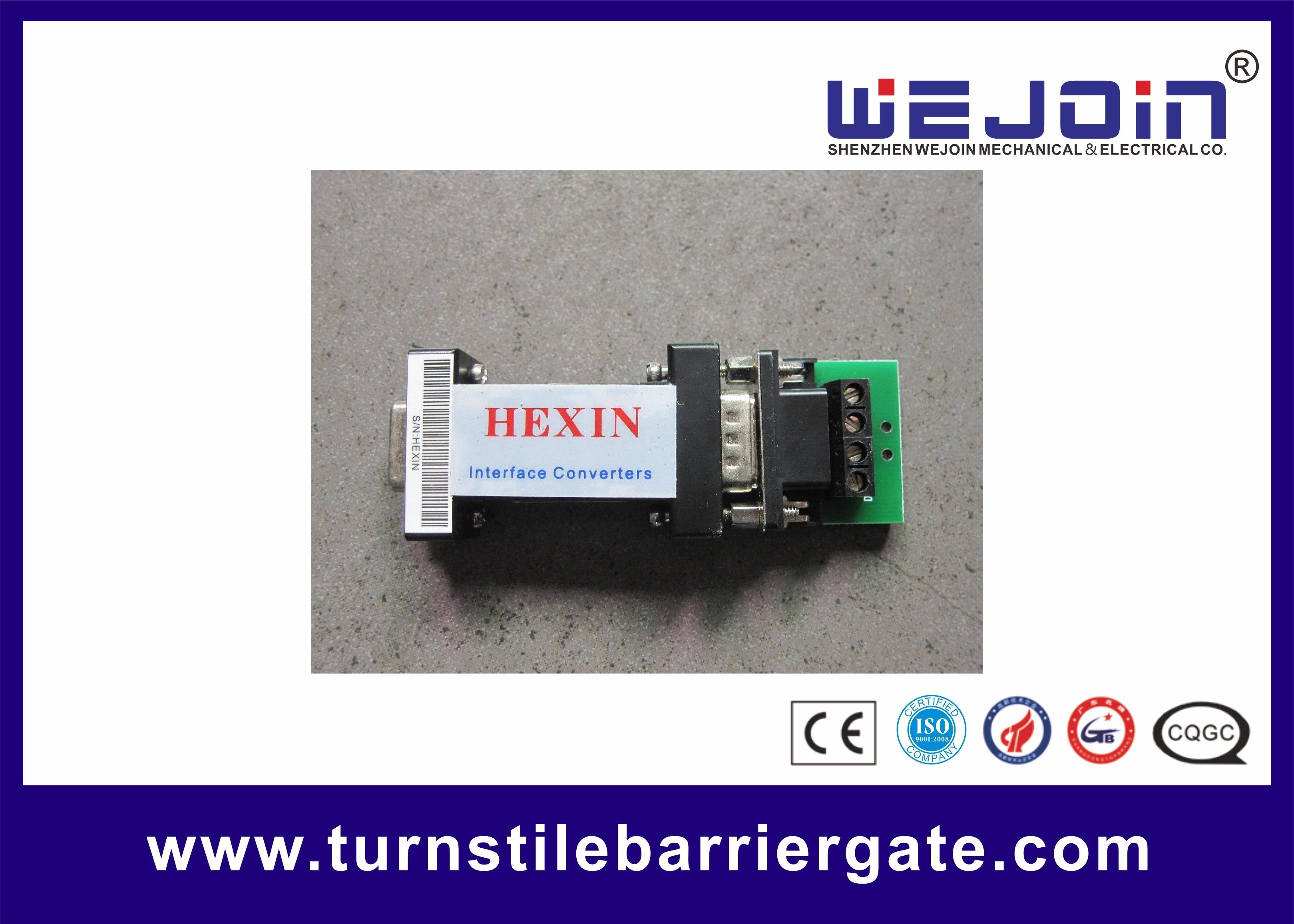

9.RS485 communication module (optional)
10. Thermal radiates rapidly, no thermal protection
11.Die-casting aluminium alloy machine core and advanced double-stage driving motor effectively solve the problem of machanism block up
12.Special art and craft makes out the most modernized and fashionable housing
13.Safety photoelectricity limit switch
Technical Data:
1) Beam length: <=6m
2) Opening (Closing) time: 4s, 6s, 8s
3) Center height: 0.83m
4) Machine core working temperature: -40 degrees to +75 degrees
5) Electric working temperature: -40 degrees to +75 degrees
6) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz
7) Rated power: 120W
8) Relative humidity: <=90%
9) Remote control distance: >=30m
10) Net weight: 70KGS
11) Protection grade: IP44
Mechanism Core
