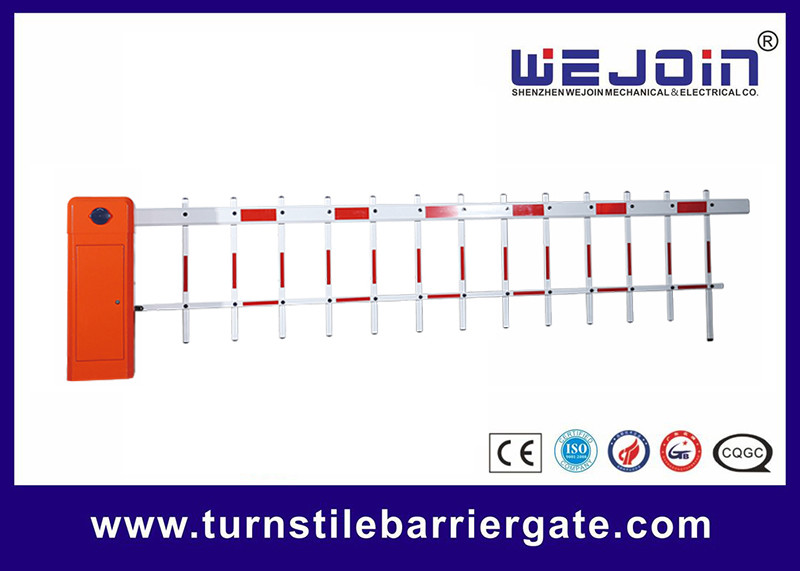

Two Fence Boom Intelligent Barrier Gate for High-grade Residential Area
Application
Suitable for indoor as well as outdoor parking area.
Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access
shopping malls, hospitals, stadiums, business centers,etc.
Technical Specification
|
Description |
Parameter |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
80W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
60kgs |
|
Arm Speed |
1s to 5s adjustable |
|
Max boom length |
4 meters |
Ordering Information
Ordering Code
|
Model No. |
Open/Close Speed |
Max Boom Length |
Boom Type |
|
WJDZ10216 |
6 seconds |
6m |
Straight boom |
|
WJDZ10213 |
3 seconds |
4.5m |
Straight boom |
|
WJDZ10211 |
1 second |
3m |
Straight boom |
|
WJDZ10226 |
6 seconds |
5m |
90 degree, Articulated boom |
|
WJDZ10223 |
3 seconds |
3m |
90 degree, Articulated boom |
|
WJDZ10236 |
6 seconds |
5m |
180 degree, Articulated boom |
|
WJDZ10233 |
3 seconds |
3m |
180 degree, Articulated boom |
|
WJDZ10246 |
6 seconds |
4.5m |
Two-level, fence boom |
|
WJDZ10256 |
6 seconds |
4m |
Three level, fence boom |
Advanced Features:
1. Safe---the barrier will automatically go back when meet obstacles during closing.
2, Swing Out Arm will swing out when hit directly by vehicle (only 1 second model ) to avoid further
damage on the vehicle.
3. Clutch key can be used to release the clutch when power off.
4. Fan cooling machine reduces the motor temperature by high frequency using, and never get
over-heated. Unique temperature calefaction design for low temperature using prevents freezing
in cold weather.
5. Exactitude aluminum alloy die-casting motor base reduces the noise and joint abrasion to prolong the
barrier gate working life.
6. Thimble type motor worm design for preventing plugging up in using.
7. Balance spring--- no noise and easy adjusting.
8. Double limit ways (electronic limit and motor sensor memory limit) for boom rising and falling.
Products Features:
New deceleration device,using CNC comprehensive precision process;reducing notice,prevention oil spills,better working,more convenient maintenance.
Cranks of main power output,use case steel, swing crank uses strengthen design, the working life can be 6 million times during normal maintenance. Daily working times(non-stop) can be over 6000.
The motor well adapts to high and low temperature(from -35～+85℃)
New digital limit technology, free adjusting, precise control; Buffer and slow down when arm goes to limit position, woking is more stably.
More powerful control system, microcomputer setting, arm up angle adjustable, counting,auto-closing time adjustable, sensibility of reversing on obstacle adjustable,RS485 communication, working speed adjustable, and etc.
Menu type control panel, operating and maintenance is more convenient.
Power supply control,voltage range is wide.
Speed is adjustable from 1s to 5s by every 0.5s, open/close speed can be different, easier for ordering and stock.
New designed damping device,damping effect better,no need maintenance forever.
Certification:
WEJOIN product manufacturing and testing are conducted in rigorous conformation with ISO international
quality management system standards, allowing our company to be ISO certified. Meanwhile, our
products have earned CE marking and more than 80 patent rights.
