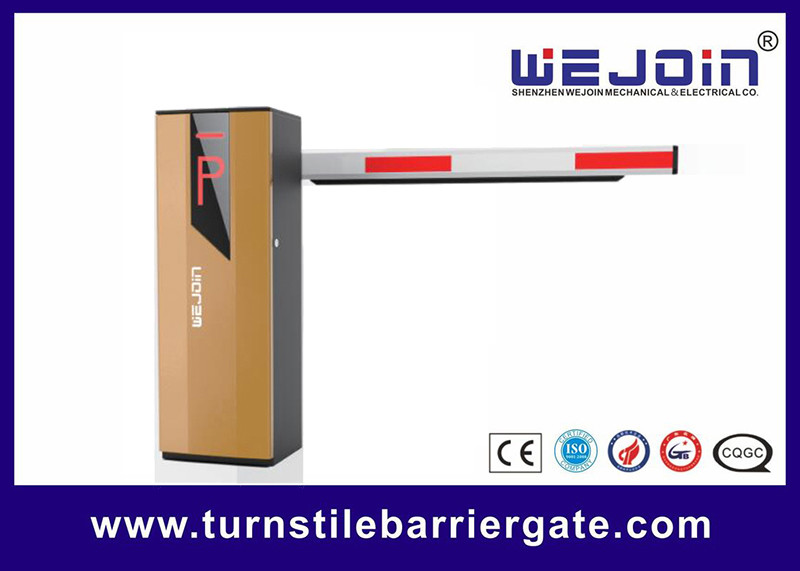

Aluminum Straight Boom Parking Barrier Gate DC Variable Frequency
Application
Suitable for indoor as well as an outdoor parking area, parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access, shopping malls, hospitals, stadiums, business centers, etc.
Technical Specification
|
Description |
Parameter |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
240W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
60kgs |
|
Arm Speed |
2s to 6s adjustable |
|
Max boom length |
6 meters |
Ordering Information
Ordering Code
|
Model No. |
Open/Close Speed |
Max Boom Length |
Boom-Type |
|
WJDZE4 |
6 seconds |
6m |
Straight boom |
|
WJDZE4 |
3 seconds |
4.5m |
Straight boom |
|
WJDZE4 |
6 seconds |
5m |
90 degree, Articulated boom |
|
WJDZE4 |
3 seconds |
3m |
90 degree, Articulated boom |
|
WJDZE4 |
6 seconds |
5m |
180 degree, Articulated boom |
|
WJDZE4 |
3 seconds |
3m |
180 degree, Articulated boom |
|
WJDZE4 |
6 seconds |
4.5m |
Two-level, fence boom |
|
WJDZE4 |
6 seconds |
4m |
Three-level, fence boom |
Advanced Features:
1. No spring design, eliminating the need for mechanical leveling, maintenance-free.
2. The boom will not fall off when power off, high safety.
3. Minimal operation, the direction can be exchanged in 30 seconds.
4. Bluetooth control, one-key remote service.
5. The perfect combination of worm gear and gear is reliable.
6. Support external radar, loop detector, infrared photocell anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
7. Support RS485 communication or RS485 off-line connection.
8. DC24V power supply is optional.
