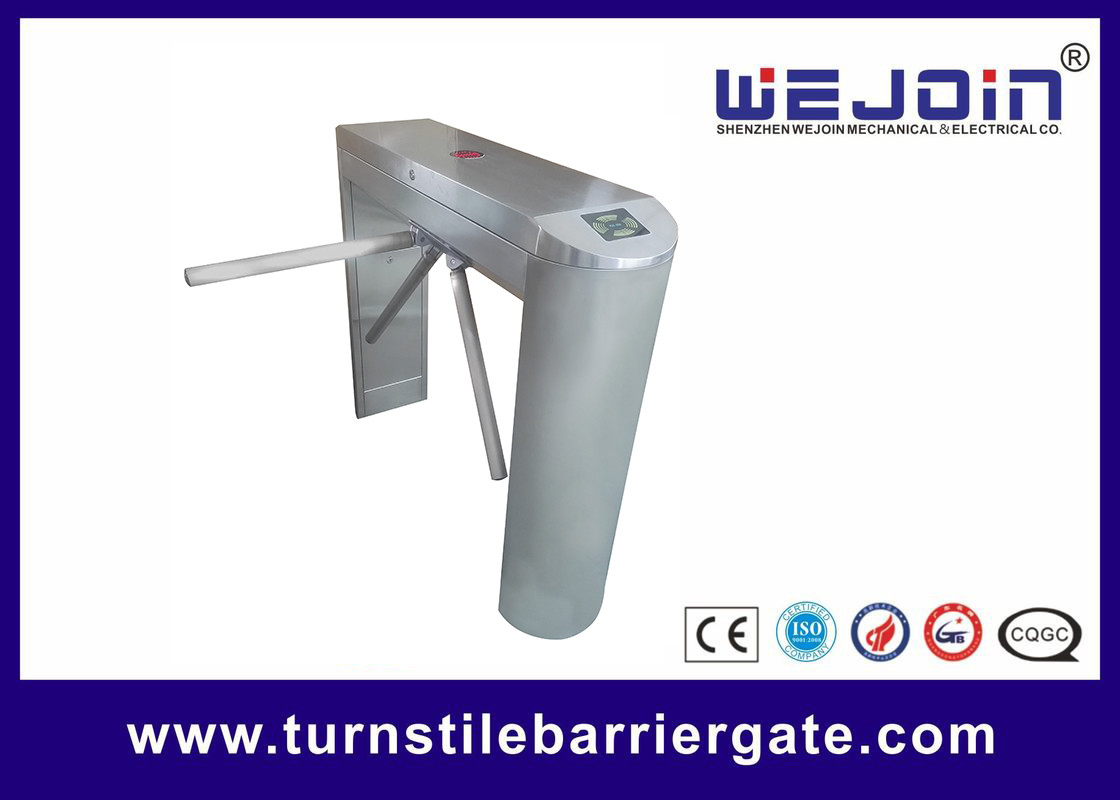

Waist High Rfid Turnstile Barrier Gate , Access Control Motorized Tripod Access System
waist high 304 stainless steel rfid access control motorized tripod turnstile barrier gate manufacturer
Applications:
The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.
Technical Parameters
| Item | WJTS210 |
| Material of housing | 304 Stainless steel |
| Dimension of Housing | 1200*280*990mm |
| Length of Pole(out of housing) | 490mm |
| Net Weight | 70KG |
| Max load-bearing of pole | 3kg |
| Power Supply | AC220V±10%,50HZ;AC110V±10%,60HZ |
| Working Voltage of motor | DC12V |
| Rated Power | 50W |
| Driving Motor | Brush dc motor |
| Input Interface |
DC 12V electrical level signal, more than 1oms, or DC 12V impulse signal driving current. more than 10ms |
| Transit speed | 25-32 persons/min |
| Working Temperature | -25℃C~+55°C |
| Working environment | Indoor/ Outdoor |
| Relative humidity | <95%, no condensation |
Functions& Features
1). Card reader available, support WEIGNAD 26/34 communication card reader
2). Bi-directional pass/any single direction pass(adjustable)
3). Arm auto-drop when power off and auto rise up when power on and auto stop on obstacle
4). Traffic light indicator/ Pass direction indication
5). Alarm light available(optional function)/Remote control available (optional function)/ Counter available (optional function)
6). RS232 socket available which can connect to computer. It can also connect to computer by Internet LAN socket (Optional function)
After-sale Service:
1 year warranty
Lifetime Service with charge accordingly
