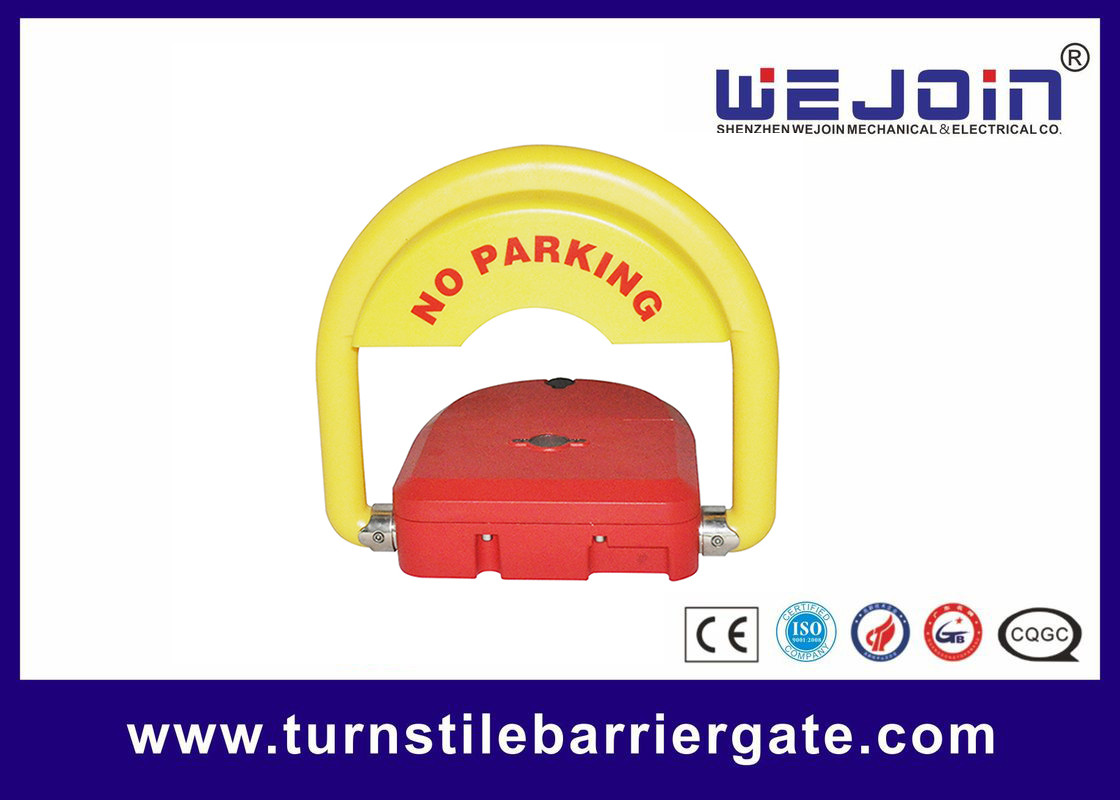

Good Sealed electric parking lock / car clamp space barrier / Parking Lot Equipment
Hermetic: the cabinet is tightly closed ,and protection grade is IP68 .it is waterproof and dust-proof . It can be used broadly.
Functions & Features:
1. Energy-saving; the battery is a best product in China and the power in it will last for half a year.
2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.
3. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.
4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.
5. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.
6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity and lesser friction.
7. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without key.
8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.
Specification:
Voltage | DC12V | Battery | DC12, 7Ah |
Dimension | 357×370×82.5mm | Current | 0.4A |
Running Time | 4~6s | Extended Height | 340mm |
Remote Distance | ≤15M | Working Temperature | -35℃~+55℃ |
Weight Born | 5t | IP Class |
IP68 |
Structure:
