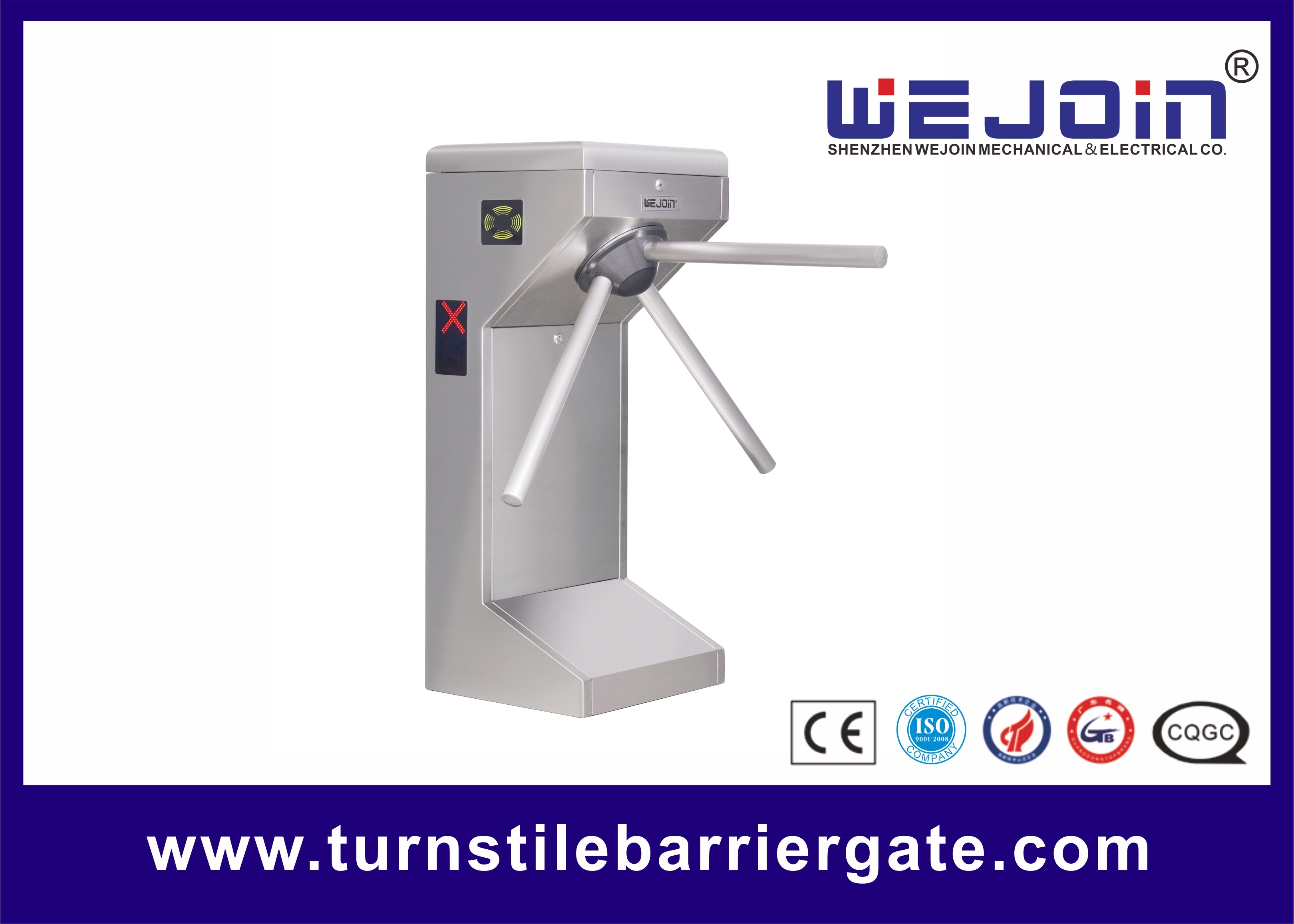

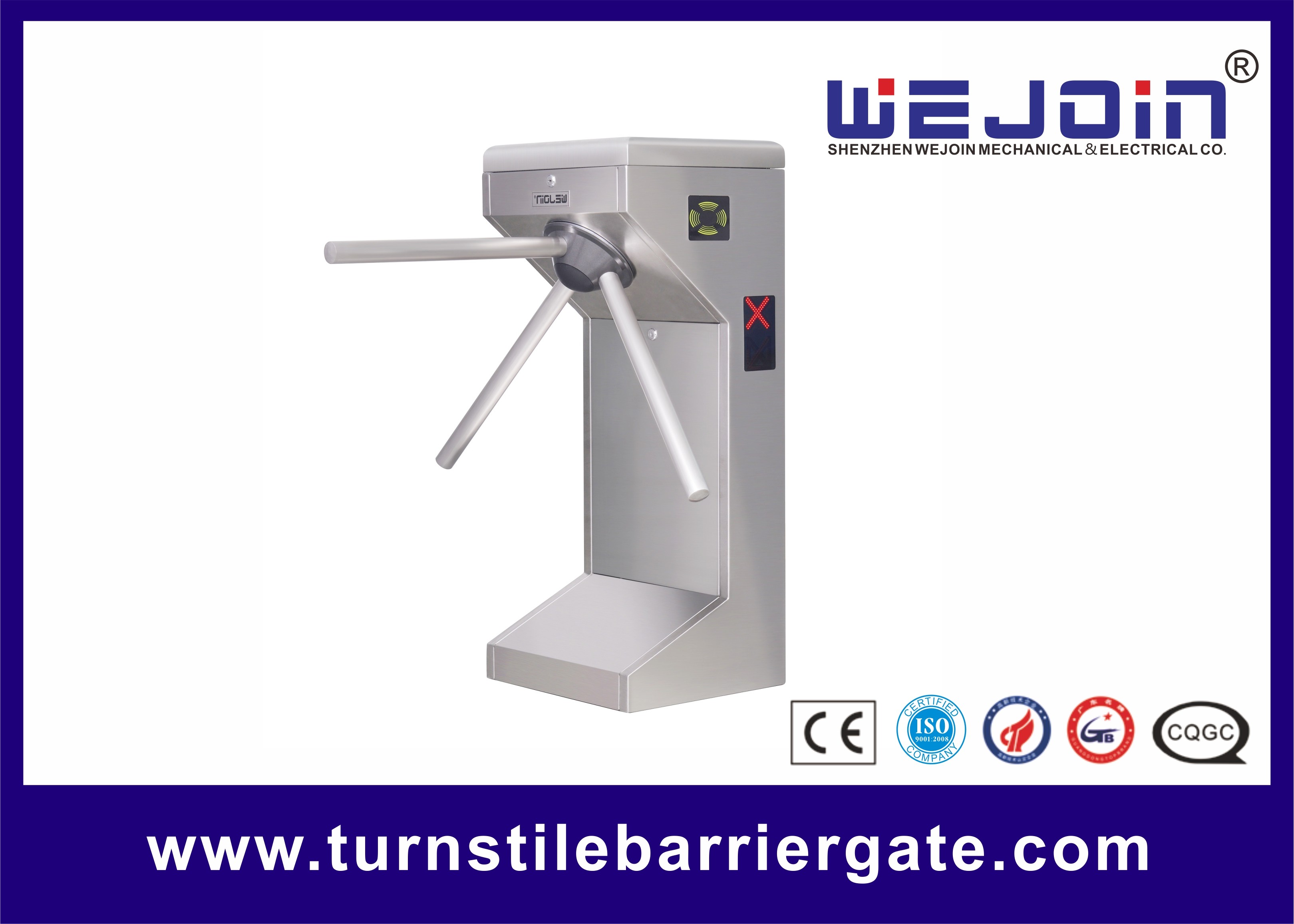

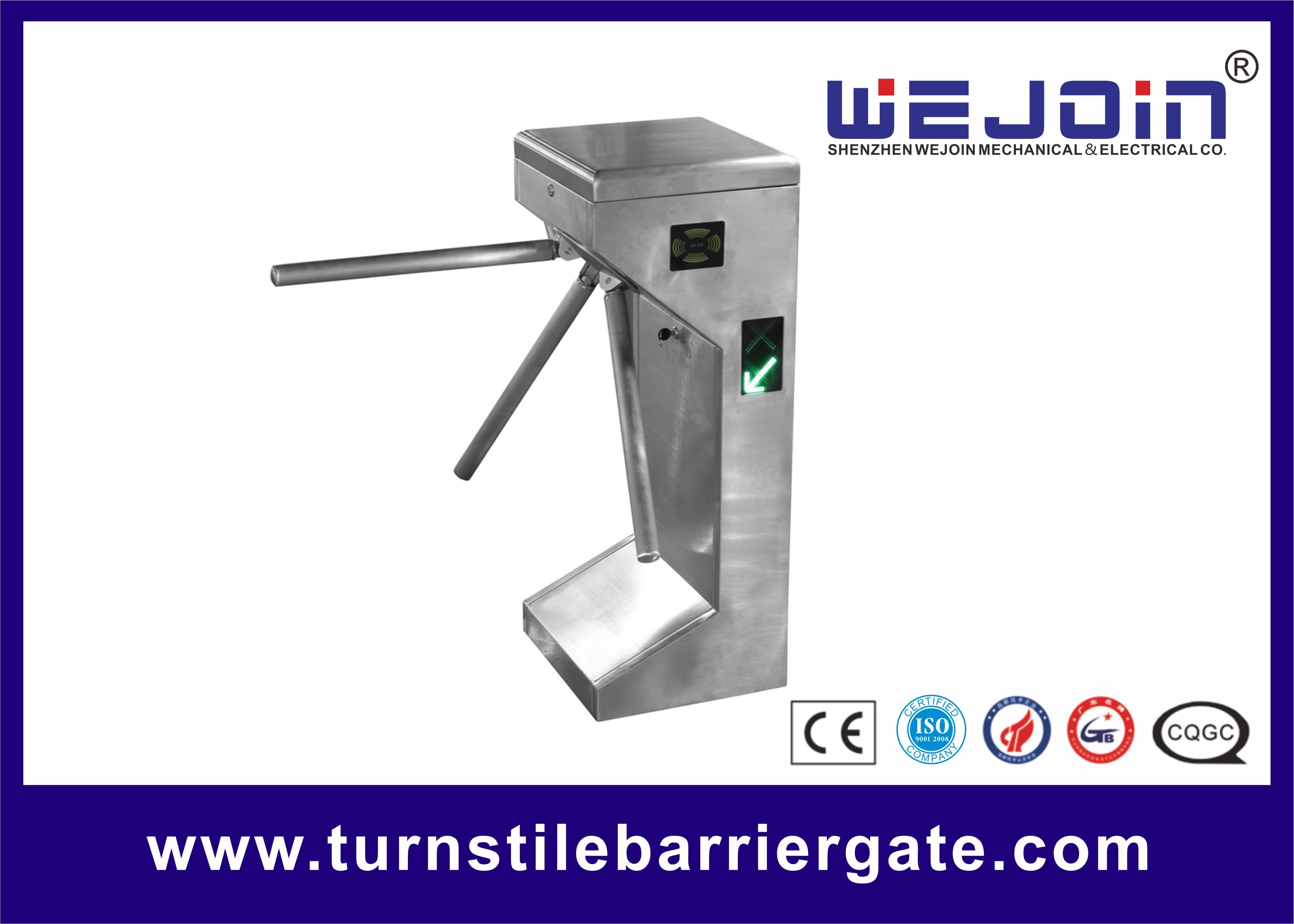

Product Introduction
This series of 304 stainless steel entrance tripod turnstile adopt the unique technology of our company---the precise photo electricity limit and gear to orient the closure. The 304 stainless steel entrance tripod turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of 304 stainless steel entrance tripod turnstile adopt standard electricity socket. It can read boom code card, ID card, IC card and so on.
There is a series of 304 stainless steel entrance tripod turnstiles. You can choose the item and specificalion. They can be used in school, metro and chamber and so on. This series is of very high-tech. In order lo guarantee it can run safely, please carefully read this instruclion!
Functions and Features:
1. Stainless Steel
2. Bi-direction pass
3. Arms auto drop when power off
4. Arms auto rise up when power on and auto stop on obstacle
5. Traffic light indicator
6. Wingen 26/Dry contact, is compatible with smart card for access control
7. Photoelectric inspection
8. If the passenger dose not pass in valid time, the passage will be locked up, And the valid time can be set up
by operator
9. Passenger counters (optional)
| Model | WJTS122 | WJTS112 | WJTS110 | WJTS111 |
| Driving Model | Full-automatic | |||
| Material of housing | 304 Stainless Steel | Iron with Powder | ||
|
Dimension of housing (L*W*H mm) |
420*380*1000 | 1235*280*1000 | 1230*280*1000 | 420*380*1050 |
| Thickness of housing | 1.5mm | |||
| Length of pole | 490mm | |||
| Net weight | 50kg | 70 kg | 70 kg | 45 kg |
| Max load-bearing of pole | 80kg | |||
| Driving force of pole | 3kg | |||
| Rotating direction | Double direction | |||
| Power supply | 220V±10%, 110V± 10% | |||
| Frequency | 50/60HZ | |||
| Working voltage of motor | DC12V | |||
| Rated power | 50W | |||
| Driving motor | Brush DC motor | |||
| Input interface | DC12V electrical level signal, more than 10ms, or DC12V impulse signal driveling current, more 10mA | |||
| Transit speed | 25~32 persons/min | |||
| Working temperature | -25°C~55°C | |||
| Working environment | Indoor / Outdoor (Shelter) | |||
| Relative humidity | ≤95%, no condensation | |||
Detail:
1.Special wheel mechanism is used here to realize the function of fixing and also unfixing all the parts of the turnstile
2.All the system runs stable with little noise and no mechanical impact
3.It can self-check and alarm which will be make it convenient to use
4.Several ways of working molds can be chosen at your request
5.All the working molds can be set by the buttons in the main control board
6.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection
7.Beam can be lifted and fall when electricity is cut-off
8.It has the standard electrical interface which can be connected with various kinds of reader and writer
equipment
9.So all the functions can be realized in one integration machine and can be controlled and managed by the computer in the far distance
10.The number of the persons who have passed by can be counted automatically which can also be displayed in LED
11.Direction-guide lights are in the turnstile to tell you which direction can go or which cannot
12.You can set the function with or without card-reading memory according to your requirement
13.The number of the persons who can pass by the turnstile can be set to meet the requirement of some special
occasions
14.After reading the card, if the person who punched the card does not pass it within the set time, then this
chance to access will be canceled, and the set time can be changed according to your request
Inner Look:
