intelligent parking gate barrier for RFID parking control

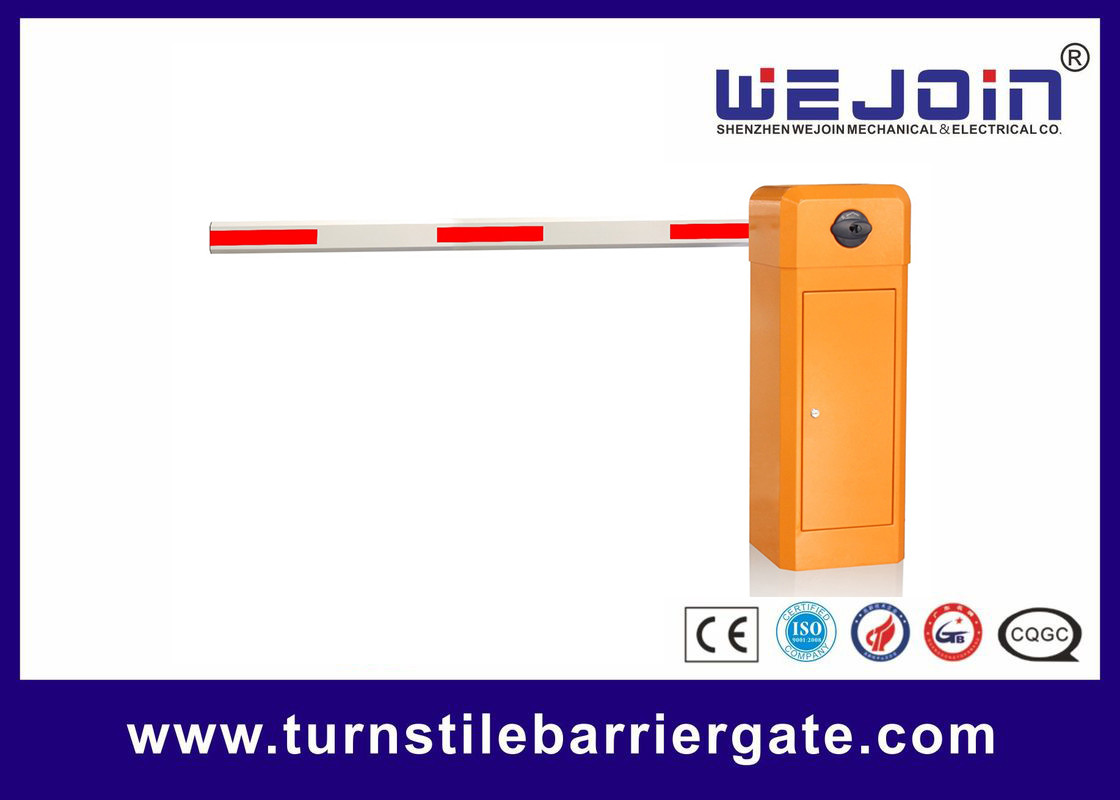

The WEDZ102 barrier gate, which manufactured by our company, adopts the latest automatic technology and intelligent design ahead in this field. Meanwhile, our barrier gates have the advanced design, such as humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking area, Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers, etc.
Technical Data
| Model | WJDZ102 |
| Working Temperature | -40℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 60kgs |
| Speed | 1S |
| Max boom length | 3 meters |
Model Selection and Differences
| Model | Boom Shape | Max Boom Length | Speed |
| WJDZ10116 WJDZ10216 |
Straight boom | 6m | 6 seconds |
| WJDZ10113 WJDZ10213 |
Straight boom | 4.5m | 3 seconds |
| WJDZ10111 WJDZ10211 |
Straight boom | 3m | 1 second |
| WJDZ10126 WJDZ10226 | 90 degree, Articulated boom | 5m | 6 seconds |
| WJDZ10123 WJDZ10223 | 90 degree, Articulated boom | 3m | 3 seconds |
| WJDZ10136 WJDZ10236 | 180 degree, Articulated boom | 5m | 6 seconds |
| WJDZ10133 WJDZ10233 | 180 degree, Articulated boom | 3m | 3 seconds |
| WJDZ10146 WJDZ10246 | Two-level, fence boom | 4.5m | 6 seconds |
| WJDZ10156 WJDZ10256 | Three-level, fence boom | 4m | 6 seconds |
Functions & Features:
A. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
B. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
C.Motor cooling fan to avoid the over-heating possibility
D.Automatic reversing when the barrier boom meets the obstruction
E.Auto closing realization through menu setting on the control panel
F.RS485 Communication Module is compatible
G.Manual release device to operate the barrier when power failure
