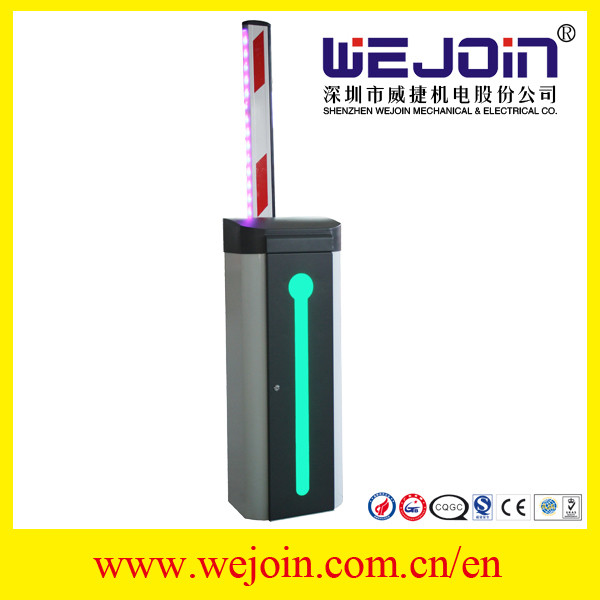

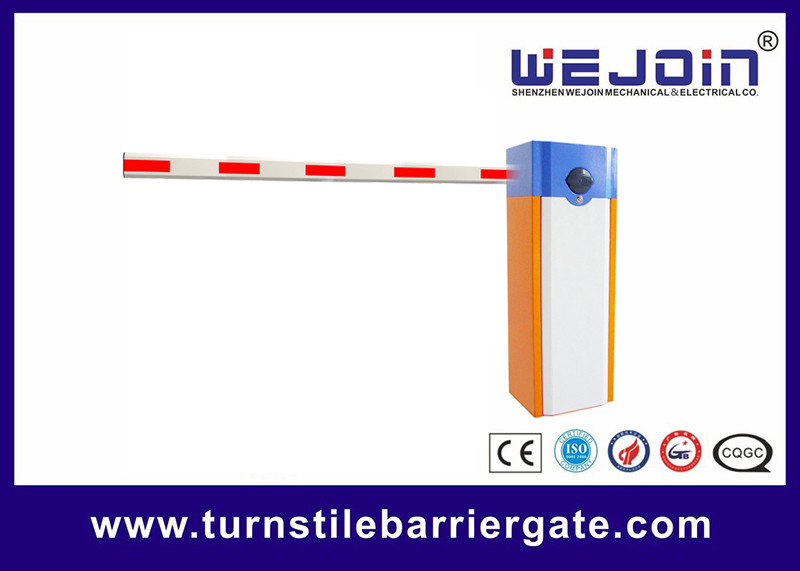

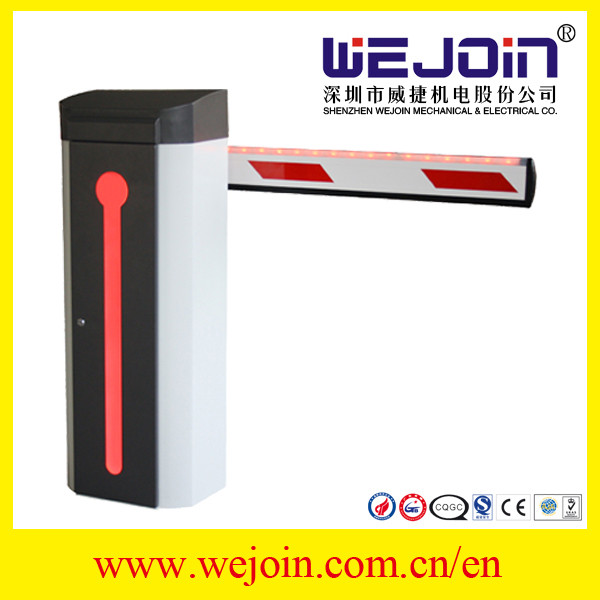

110v/220v Boom barrier gate arm / Automatic Parking Barrier For Office Building
Parking Barrier Functions & Features:
1. Advanced manual release
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch
13. Boom with LED light (color is changeable with remote control)
14. Cabinet with traffic light
15. Remote Control Frequency: 315MHz, 418MHz, 433MHz
Barrier Gate Specifications:
|
Model |
WJDZ101 |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
300W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
45kgs |
|
Speed |
3S, 6S |
|
Max boom length |
6 meters |
Boom Barriers Applications:
You probably have already seen these in toll gates, parking zones, and vehicle security checks.
Very efficient, high speed method of controlling traffic flow.
This system consists of a long hollow rod like structure (called the boom) which acts as an obstruction for the vehicle, indicating it to stop.
The other part of the system fixed to the RCC foundation on the ground is called the barrier.
The barrier has a heavy duty motor fitted inside reinforced with springs.
WEJOIN boom barrier is super easy to use, remote controlled, can be integrated with almost any security device (access control, RFID card reader, finger print scanner, etc) .
