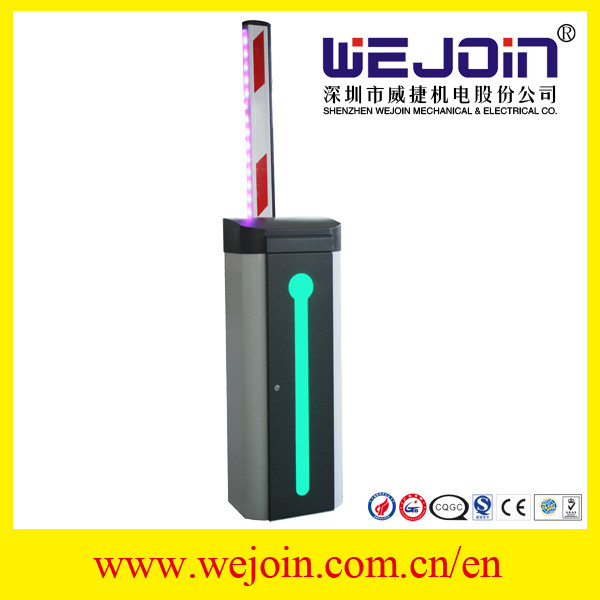

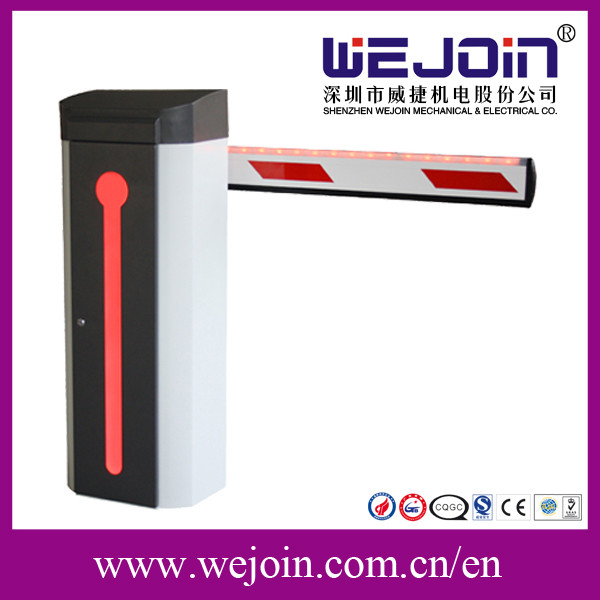

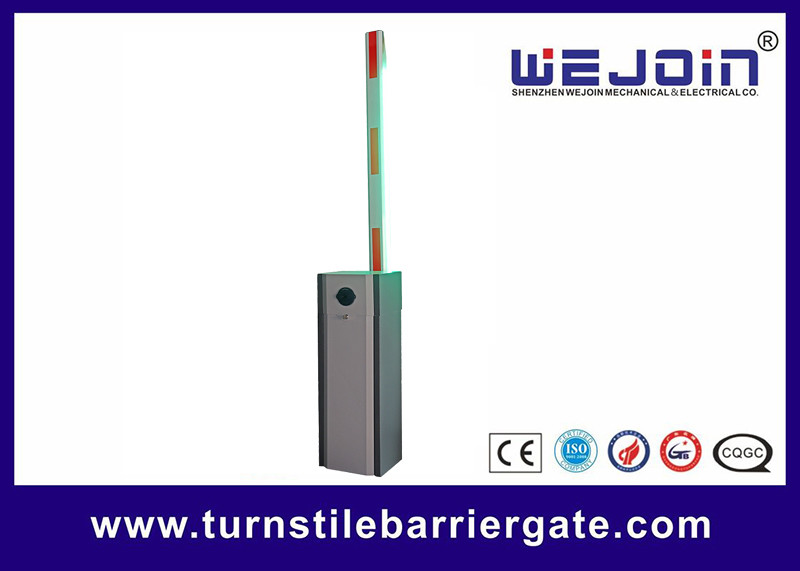

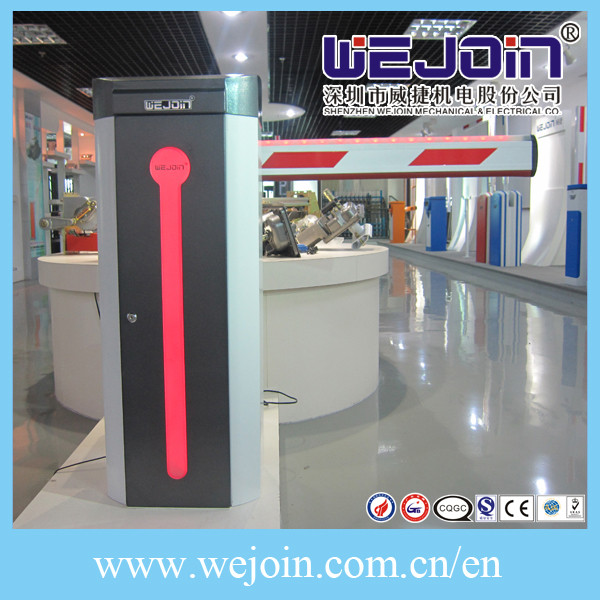

110v/220v Boom barrier gate arm / Automatic Parking Barrier For Office Building
Barrier Gate Brief Introduction
Name: Bi-directional Barrier Gate
Application : Parking System
Speed:3/6 second
Feature: Manual release
Rated Power:300W
Certificate:CE, ISO,
Net Weight:45KG
Voltage:AC220V, AC110V
Description:
Model Selection and Differences
|
Model Item |
WJDZ10113 |
WJDZ10116 |
|
Opening Time |
3S |
6S |
|
Boom Type |
Straight, folding arm |
|
|
Boom Length |
3M |
4M |
|
Voltage |
110V/220V |
|
|
Motor/Power |
AC/300W |
|
|
Working Temperature |
-35℃ - 75℃ |
|
|
Protection Grade |
IP55 |
|
|
Remote Control Distance |
30M~100M |
|
Functions & Features:
1. Advanced manual release
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch
13. Boom with LED light (color is changeable with remote control)
14. Cabinet with traffic light
15. Remote Control Frequency: 315MHz, 418MHz, 433MHz
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 10000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
