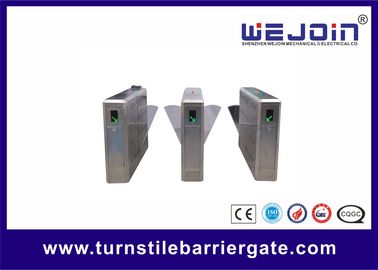

Flap Barrier/Speed Gate
Product Introduction
Intelligent flap barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.
Functions&Features
1) A compact clcctro-mcchanical design with unique drive and a self-lock mechanism
2) Automatic detection for malfunctions
3) Input interface available for dry contact and switch signal connection
4) Adjustable auto-dclay closing
5) Infrared photocells for safety access
6) Alarm for unauthorized access and no access against passenger flow
7) Anti-reverse passing
8) Auto-closing when power on
9) Auto-open and free access when power off
10) Adjustable access directions
11) Emergency interface available
12) Traffic light indicating passenger access
Model | WJTY201 |
Stretching-out flap length | 275mm |
The max lane width | 600mm |
Cabinet material | Cold rolled steel & aluminum alloy |
Material of Flap Door | Organic glass |
Housing of thickness | 1.5mm |
Normal Life Span | 3 millions times |
Communication Interface | Standard RS485(distance less than 1200 meters) |
Transit speed | 30-40 persons/min |
Time for opening or closing | 0.5s |
Starting time after power on | 3s |
Input interface | Dry contact signal or +12Vor pulse signal with width more than100ms DC12V |
Transit speed | 25~32 persons/min |
Working temperature | -10°C~50°C |
Working environment | Indoor / Outdoor (Shelter) |
Relative humidity |
≤95%, no condensation |
