Custom Ticket Dispenser access control barrier Parking Lot Arm Gate
Quick Detail:
Description:
Model Selection and Differences
|
Model(WJDZ)
Item |
820-13 | 820-16 | 820-26 | 820-36 | 820-46 | 820-56 |
| Opening Time | 3S | 6S | ||||
| Boom Type | Straight |

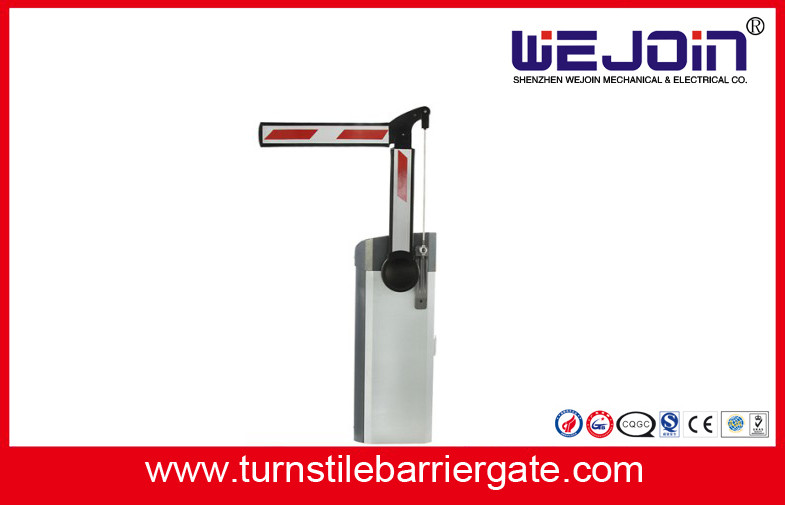

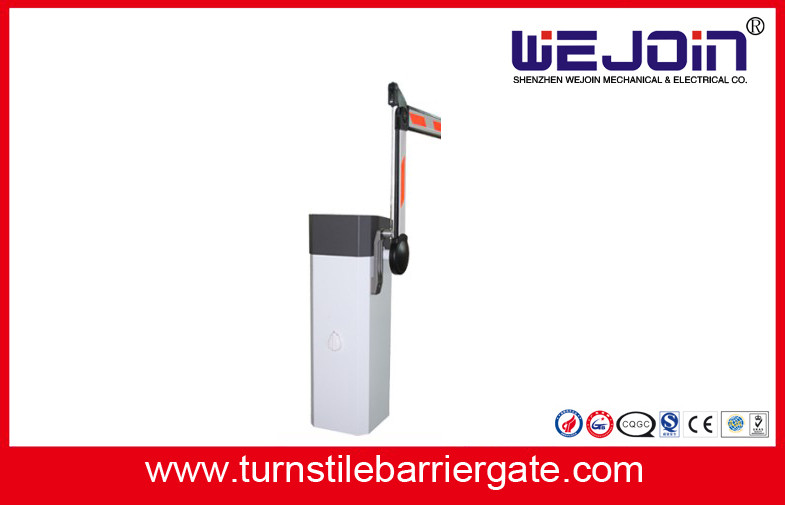

Articulated 90 degree |

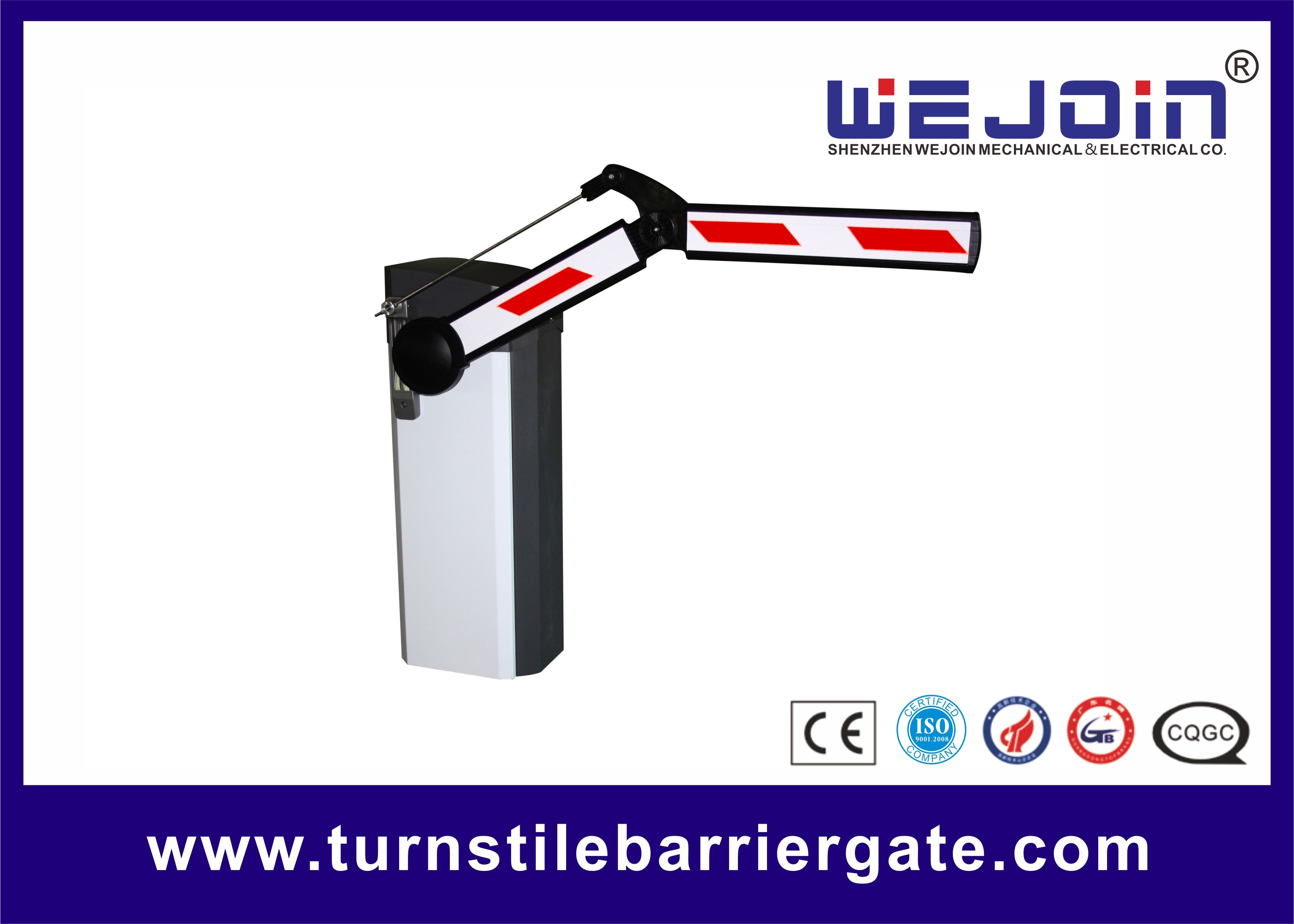

Articulated 180 degree |
Fence Two-level |
Fence Three level |
|
| Boom Length | 3m | 6m | 5m | 5m | 5m | 5m |
| Voltage | 220V/110V | |||||
| Remote control distance | 30m≤L≤100m | |||||
| Protection Grade | IP44 | |||||
| Working Temperature | -35℃ - +60℃ | |||||
| Rated Power | 80w | |||||
Functions & Features:
1. Open the barrier gate by motor wheel when power off and automatic locking when power on
2. Balanced boom running with a motor transmission of cranks and shafts
3. Boom with protective rubber band
4. Interface for traffic light
5. Infrared photocells interface is available
6. Loop detector interface is available
7. Well-integrated with car parking system equipments, with wire control (push button)
8. Offering dry contact signal for car parking system (COM, NC, NO)
9. Auto-reverse when the boom meets obstruction
10. Auto-delay when closing (adjustable)
11. Remote control frequency: 315 MHz, 418MHz, 433MHz
12. Remote control to operate the barrier gate
Applications:
Barrier Gate with rubber boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
Specifications
| Model | WJDZ820 |
| Working Temperature | -35℃～+60℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 50kgs |
| Speed | 1.5S, 3S, 6S |
| Max boom length | 6 meters |
Why to choose WEJOIN 110/220v Barrier Gate For Ticket Dispenser?
1. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles
2. Barrier Gate uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
3. Barrier Gate adopts the latest mold casting design, without clutch device. Its machine core adopts connecting rod structure mainly comprised with worm wheel, worm and crank arm. The barrier gate runs stably, and is conveniently maintained.
4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
Communication with customers
Q: There is no reaction on the motor when pressing the remote controller buttons,why?
A:(1)Please check whether the power is supplied to the barrier gate orr not
(2)Please check whether the fuse id burnt out or not
(3)Please check whether the code both in the remote controller and the control board are accordant or not
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 10000 units.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
