LED Boom Vehicle Barrier Gate / Automatic Car Park Barriers For Supermarket
Applications:

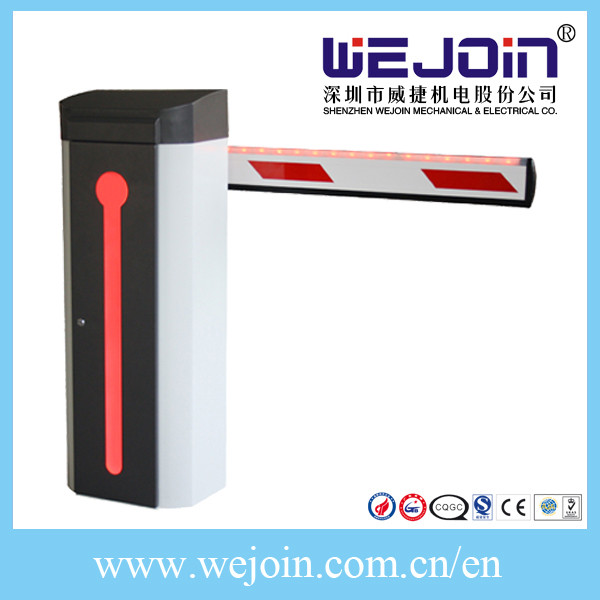

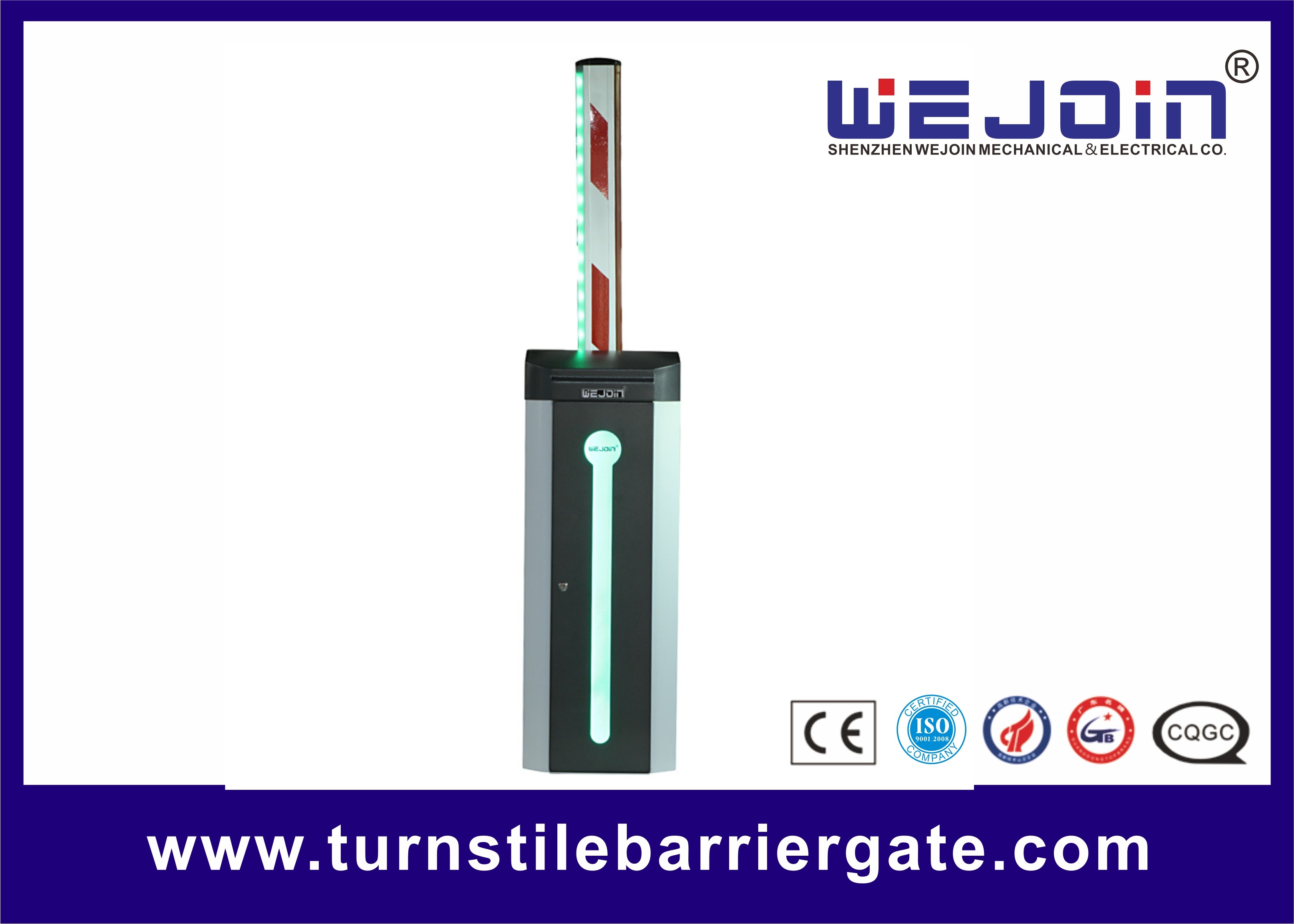

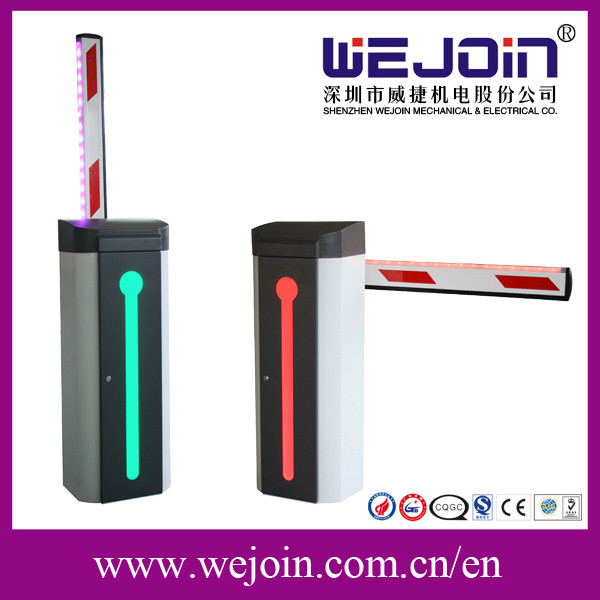

Barrier Gate with LED boom is installed with LED boom and the traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Besides the LED, the boom is also installed with rubber below, which not only indicates the transit situation but also protects the vehicle from hitting.
Quick Detail:
Name: Bi-directional Barrier Gate
Application: Parking System
Speed:3/6 second
Feature: Manual release
Rated Power:120W
Certificate: CE, ISO,
Net Weight:45KG
Voltage: AC220V, AC110V
Description:
Model Selection and Differences
Model | WJDZ62013 | WJDZ62016 |
| Opening Time | 3S | 6S |
| Boom-Type | Straight, square-shaped | |
| Boom Length | 3M | 4M |
| Voltage | 110V/220V | |
| Motor/Power | AC/120W | |
| Working Temperature | -35℃ - 75℃ | |
| Protection Grade | IP44 | |
| Remote Control Distance | 30M~100M | |
Specifications
| Model | WJDZ620 |
| Working Temperature | -40℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 120W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 45kgs |
| Speed | 3S, 6S |
| Max boom length | 6 meters |
Functions & Features:
1. Advanced manual release
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch
13. Boom with LED light (the color is changeable with remote control)
14. Cabinet with traffic light
15. Remote Control Frequency: 315MHz, 418MHz, 433MHz
