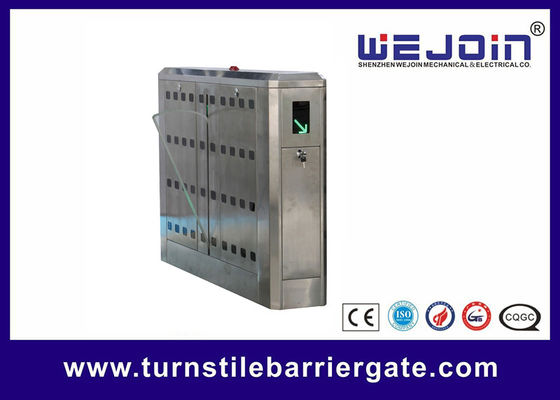

Automatic pedestrian waist high 304 stainless steel flap barrier turnstile gate with RFID card
Product Introduction
Intelligent flap barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.
Flap Barrier Gate Functions and Features
1. The design is of integration of machinery and electronic structure, with special drive style and reliable machinery auto locking solution, precise worm gear, and cabinet composite structure.
2. Malfunction self-detection. Which is easy for operation and maintenance.
3. Flap work synchronously.
4. Flap auto reversing when meeting exterior force.
5. Audible and visual alarm in case of unauthorized access.
6. Auti-reverse passing
7. Operational mode can be set up through the built-in menu on the control board.
8. Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.
9. Flaps open when power off, and auto-close when power on.
10. Compatible with diverse access control devices.
11. Pedestrian flow directions can be single or double directions.
12. Available for two-way traffic lights, which can prompt the state---pass or no-entry.
13. RS232 and LAN sockets are available to connect the computer.
Flap Barrier Gate Specifications
|
Model |
WJTY202 |
|
Cabinet dimension |
1450mm(L)×270mm(W)×1000mm(H) |
|
Stretching-out flap length |
275mm |
|
The max lane width |
650mm |
|
Cabinet material |
304 stainless steel |
|
Power supply |
AC220V±15%, AC110V±15% |
|
Motor voltage |
DC24V (brush motor) |
|
Access device input voltage |
dry contact or 12V electrical level signal or ＞100ms 12V impulse signal or driving current ＞10mA |
|
Max flow rate |
30~40 people per minute |
|
Flap opening/closing time |
1 sec |
|
reset time when power on |
3 sec |
|
protection grade |
IP32 |
|
working environment |
outdoors (with shelter) and indoors. |
|
working temperature |
-10°C~50°C |
