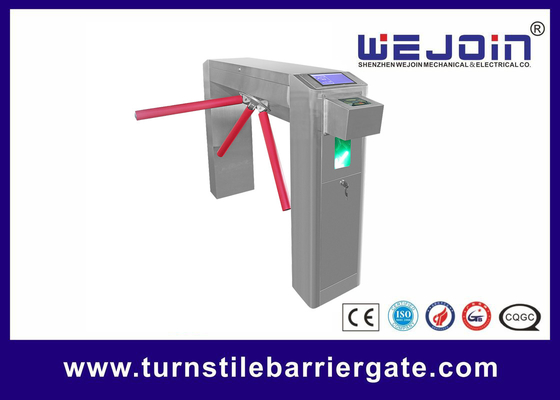

Outdoor pedestrian security tripod turnstile Barrier Gate with card reader
Turnstile barrier Gate Introduction
This series of 304 stainless steel entrance tripod turnstile adopt the unique technology of our company---the precise photo electricity limit and gear to orient the closure. The 304 stainless steel entrance tripod turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of 304 stainless steel entrance tripod turnstile adopt standard electricity socket. It can read boom code card, ID card, IC card and so on.
Turnstile barrier Gate Function and Features
Full-automatic
1. Stainless steel house or cold rolling iron painted
2. Card reader available, support WEIGNAD 26/34 communication card reader.
3. Bi-direction pass &any single-direction pass (adjustable
4. Arm auto drop when power off
5. Arm auto rise up when power on and auto stop on obstacle
6. Traffic light indicator Pass direction indicator
7. Alarm available (optional function)
8. Remote control available (optional function
Semi-automatic
1) Exquisite rotating plate and a self-lock mechanism
2) Passable for bi-direction
3) Self-locking within 5 seconds
4) Arm auto dropping when power off
5) Avoid unauthorized access
6) Counter output
Turnstile barrier Gate After-sale Service
1 year warranty
Lifetime Service with charge accordingly
Turnstile barrier Gate Technical Data
|
Model |
WJTS112 |
WJTS112S |
|
Driving Model |
Full-automatic |
Semi-automatic |
|
Material of housing |
304 Stainless Steel |
|
|
Dimension of housing (L*W*H mm) |
1235*280*1000 |
1220*280*980 |
|
Thickness of housing |
1.5mm |
|
|
Length of pole |
490mm |
|
|
Net weight |
70kg |
40 kg |
|
Max load-bearing of pole |
80kg |
|
|
Driving force of pole |
3kg |
|
|
Rotating direction |
Double direction |
|
|
Power supply |
220V±10%, 110V± 10% |
|
|
Frequency |
50/60HZ |
|
|
Working voltage of motor |
DC12V |
|
|
Rated power |
50W |
36W |
|
Driving motor |
Brush DC motor |
Brushless DC Motor |
|
Input interface |
DC12V electrical level signal, more than 10ms, or DC12V impulse signal driveling current, more 10mA |
dry contact with the pulse between 200ms~500ms |
|
Transit speed |
25~32 persons/min |
30~45 persons/min |
|
Working temperature |
-25°C~55°C |
|
|
Working environment |
Indoor / Outdoor (Shelter) |
|
|
Relative humidity |
≤95% |
|
