qr code access control security entrance flap gate barrier for subway
Product Introduction

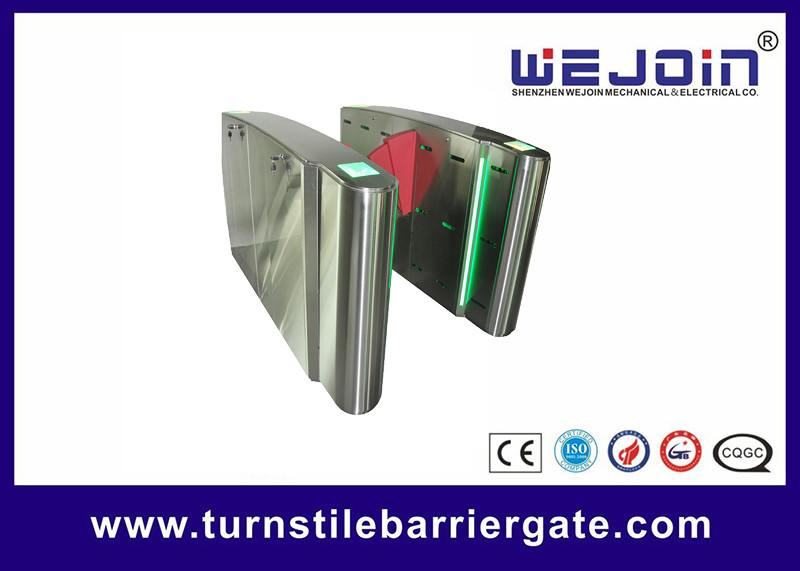

Intelligent flap barrier is a brand-new product of WEJOIN Company It has features of precise craftsmanship, comprehensive functions and high reliability.
The flap barrier consists of left machine core and right machine core The machine core is classified into singe core and double core, left core and right core, and core for normal lane (600mm)or widened lane(900mm)
Product Application
This machine is suitable to be used in places like high class communities, office buildings, hotels, subway stations, gym and so on.
Unique structure with drive shaft system make it reliable and maintenance free (no need regular gear clutch structure). When power failure, the door will close automatically without accumulator.
Main Features
Flap Barrier
1) A compact electro-mechanical design with unique drive and a self-lock mechanism
2) Automatic detection for malfunctions
3) Input interface available for dry contact and switch signal connection
4) Adjustable auto-delay closing
5) Infrared photocells for safety access
6) Alarm for unauthorized access and no access against passenger flow
7) Anti-reverse passing
8) Auto-closing when power on
9) Auto-open and free access when power off
10) Adjustable access directions
11) Emergency interface available
12) Traffic light indicating passenger access
Technical Data
|
Material of Housing |
304Stainless Steel |
|
Material of Flap Door |
Organic Glass , Resin, or PVC |
|
Thickness of Housing |
1.50mm |
|
Width of passage |
600 mm & 900 mm |
|
Power supply |
220V±10% , 110V±10% |
|
Frequency |
50/60 Hz |
|
Working voltage of motor |
DC24V |
|
Normal Life-span |
3 million times |
|
Time for Opening or Closing |
1 second |
|
Starting time after power on |
3 seconds |
|
Automatic reset time after fault |
10 seconds |
|
Transit speed |
30-40 Persons/min |
|
Working Environment |
Indoor / Outdoor (Shelter) |
|
Working Temperature |
-10°C~50°C |
|
Relative Humidity |
≤90%, no condensation |
