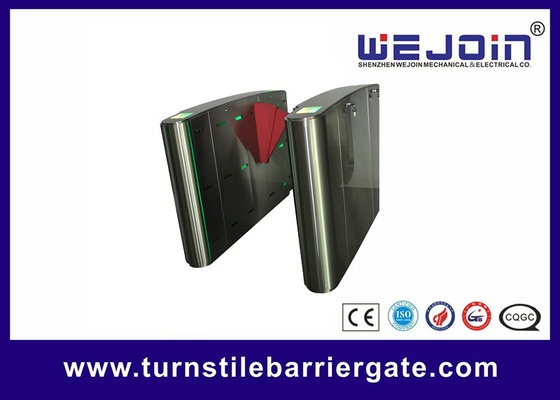

304 stainless steel high speed gate flap barrier turnstile office buildings
Quick Detail:
material: 304 stainless steel & aluminum alloy
protection grade IP32
direction: bi-direction
Power supply AC220V±15%, AC110V±15%
Motor voltage DC 24V (brush motor)
working temperature -25°C~50°C
Product Application
This machine is suitable to be used in places like high class communities, office buildings, hotels, subway stations, gym and so on.
Product Introduction
Intelligent flap barrier is a brand-new product of WEJOIN Company It has features of precise craftsmanship, comprehensive functions and high reliability.
The flap barrier consists of left machine core and right machine core The machine core is classified into singe core and double core, left core and right core, and core for normal lane (600mm)or widened lane(900mm).
Common Malfunctions and Solutions
1. Giving the open signal, it can open but can not auto-close.
A. The receiving side and transmitting side of the infrared photocell are not fixed in the horizontal position or the infrared photocell are not connected well.
B. Some obstacles in the middle of the infrared photocell
2. The gate already open or close in place, but it did not stop
A. The limit switch is broken.
B. The limit switch is not fixed in right position.
3. The gate can not close in time after the passenger already passed.
A. The he infrared photocell is broken.
B. The infrared photocell is fixed in right position or connected well.
Technical Data
|
Max flow rate |
30~40 people per minute |
|
Flap opening/closing time |
0.5s ~ 1s |
|
reset time when power on |
2s |
|
protection grade |
IP32 |
|
working environment |
outdoors (with shelter) and indoors. |
|
working temperature |
-25°C ~ +50°C |
