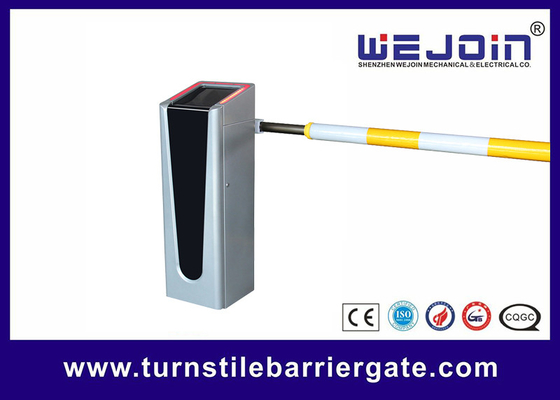

24 Hours Continuous Operation Parking Lot Security Gates Access Control RFID System

Boom Barrier Access Control RFID System Vehicle Access Parking

Product parameter:

Working temperature:35℃~85℃
Power supply:AC 220V/110V±10% 50/60HZ
Max Motor Power:300W
Relative humidity:≤90%
Remote control distance:≥30m
Insulation grate:F
Running Speed and Max Boom Length:
CB02E: 0.5-0.9s, max boom length: 3m carbon fiber round boom
CB02H: 0.9-5s, max boom length: 6m straight boom, 4.5m two-fence boom, 4m three-fence boom
CB02I: 3-5s, max boom length: 8m straight boom, 6m two-fence boom, 5m three-fence boom

Parking Barrier Gate Features:

1. DC permanent magnet synchronous motor (PMSM) and servo control technology.
2. The motor has the same performance as the main motor of CNC machine and electric vehicle. It has high control precision, high torque density, good torque balance, low power consumption, high efficiency and low noise.
3. Three tension spring crank transmission design for more stable and reliable structure. (Patented Technology)
4. Scientific balance design, using special material spring, for better balance and maintenance-free.
5. No limit switch design, accurate encoder detection, detecting boom position when power on.
6. Electronic clutch design, more convenient to unlock or lock the motor when power off. ( Patented Technology)
7. Safety protection device (when the boom moves to up limit position) can prevent the boom from falling in case of sudden power failure, accidental spring breakage or spring fatigue.
8. Servo control motor with lower working temperature can support 24-hour continuous operation without downtime.
9. Bi-direction boom holder design, left-installation and right-installation can be exchanged easily and quickly.
10. More sensitive and reacting faster when reversing on obstacles.

CB02 Commercial Servo Barrier Gate Series
Huayao G20 Commercial Servo Barrier Gate
MTBF: ≧10 million opening and closing cycles
It can be equipped with CB02E(0.5-0. 9S), CB02H(0.9-5S), and CB02I(3-5S)mechanism
Left-installation and right-installation can be exchanged
Super torque, High precise control,Three spring balance mechanism
Alarm against abnormal lifting boom
Support 24 hour continuous operation without heating protection
LCD function display controller
Electronic clutch design
Speed will reduce when boom moves to the limit position
RS485 communication, TCP/IP network port
DC12V power supply is optional

CB02E/H Series Boom Length and Speed Selection
