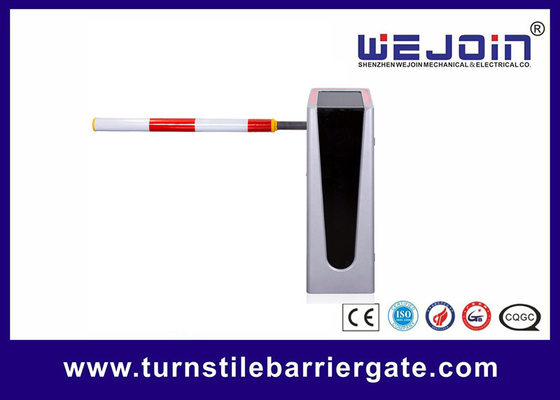

Heavy duty automatic parking barrier arm gate access control
CB02 Commercial Servo Barrier Gate Series
Huayao G20 Commercial Servo Barrier Gate
MTBF: ≧10 million opening and closing cycles
It can be equipped with CB02E(0.5-0. 9S), CB02H(0.9-5S), and CB02I(3-5S)mechanism
Left-installation and right-installation can be exchanged
Super torque, High precise control,Three spring balance mechanism
Alarm against abnormal lifting boom
Support 24 hour continuous operation without heating protection
LCD function display controller
Electronic clutch design
Speed will reduce when boom moves to the limit position
RS485 communication, TCP/IP network port
DC12V power supply is optional
Functions & Features
1. DC permanent magnet synchronous motor(PMSM),servo control.
2. Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.
3. Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4. Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)
5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)
6. No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
CB02H Series Boom Length and Speed Selection
|
Model |
WJCB02H |
||||
|
Running Speed |
0.9s~5s |
5s |
5s |
5s |
5s |
|
Boom Type |
Straight |
90° Folding |
180° Folding |
2 Fence |
3 Fence |
|
Max Boom Length |
3.5m~6m |
5m |
4m |
4.5m |
4m |
Technical Data
Input Voltage:AC 220V±10%, AC110V%,50/60HZ
Motor Voltage:DC310V
Enclosure Rating: IP54
Working Temperature: -35°C~+85°C
MTBF:10000000 times
Duty Cycle:100%
Traffic Flow Application:24 hours uninterrupted operation
Max Motor Power:300W
Max Motor Speed:90r/min
Max Torque: 480N.m
Application:
This Parking Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport etc.
