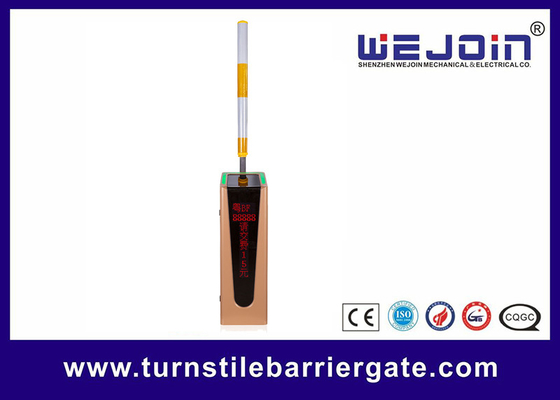

Parking lot barrier gates automatic vehicle access control barrier
PERFROMANCE of WEJOIN Boom Barrier Gate
* Fast and smooth opening and closing
* Reliable electric torque motor with a lever system
* Designed for intensive use
* Auto reverse at any time if hits an obstruction
* Swing away mechanism will sheer off to prevent the barrier and boom arm (for high speed barrier gate)
RELIABILITY
* Automatic systems over 15 years experience
* Robust housing designed to protect the components, even when crashed by a vehicle Maintenance free torque motor, no need friction clutch
* Torque motor can get warming in cold climate when outside temperature is below 0, adapt to low temperature automatically
* Cooling system with fan kit will guarantee reliable and problem free operation in hot weather
* 14 gauge zinc plated sheet steel with phosphate and powder coating finished for maximum protection against corrosion, and can be installed in any position without the risk of damage.
MODULARITY
* Designed for versatile applications and environments
* Unlocking is convenient in case of power failure
*Various accessories provided, allowing to meet all kinds of installation constraints and various requirements in terms of security
* Inbuilt spring mechanism provides a precise counterbalance for the barrier boom and springs can be easily reset on site
SECURITY
* Fast closing after the vehicle passing
* Mechanical locking in open and closed position
* Various accessories enable to ensure the security level (fences, tip supports, photocells, pressure wave switch, illuminators...)
* Manual release in the event of power failure or faulty operation
CB02H Series Boom Length and Speed Selection
|
Model |
WJCB02H |
||||
|
Running Speed |
0.9s~5s |
5s |
5s |
5s |
5s |
|
Boom Type |
Straight |
90° Folding |
180° Folding |
2 Fence |
3 Fence |
|
Max Boom Length |
3.5m~6m |
5m |
4m |
4.5m |
4m |
Technical Data
Input Voltage:AC 220V±10%, AC110V%,50/60HZ
Motor Voltage:DC310V
Enclosure Rating: IP54
Working Temperature: -35°C~+85°C
MTBF:10000000 times
Duty Cycle:100%
Traffic Flow Application:24 hours uninterrupted operation
Max Motor Power:300W
Max Motor Speed:90r/min
Max Torque: 480N.m
Application:
This Parking Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport etc.
