Automatic Access Control Folding Arm Barrier Gate

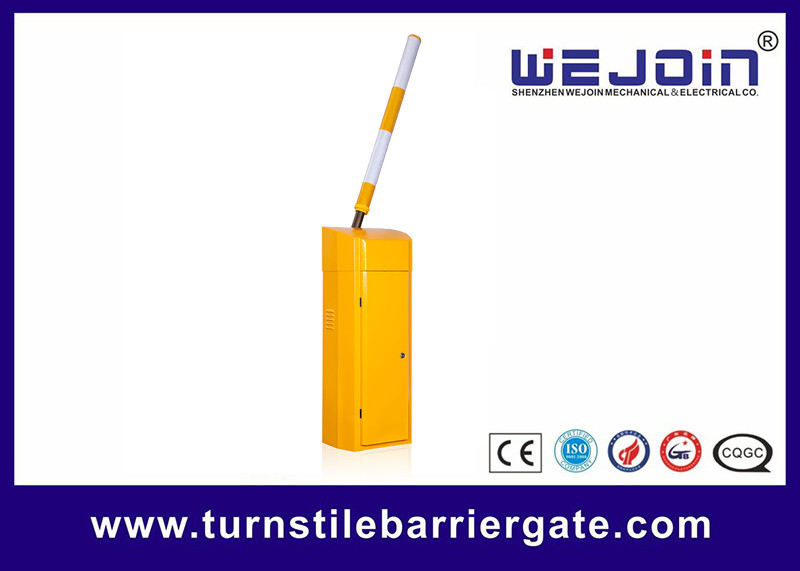

WEJOIN Commercial Servo Barrier Gate WJCB02
Barrier gate, also named as intelligent/electric vehicle road blocker, is a widely used machine in gate access control application.
In addition, all parking system integration and/or installation company can more easily understand the important value of barrier gate for parking lots project. So how to choose a good quality and high cost-effective barrier gate is an important lesson for their manager and engineers.
Our barrier gate is one of your option, we are professional hardware provider of parking management system and security access control system.
Description:
1) Fastest running speed can be 0.4 second (model WJCB02E, 0.4~0.9s adjustable)
2) Barrier gate life-span: >5,000,000 times
3) Suit application: indoor and outdoor parking system
4) Open/close method: by remote control, push key, manual handle
5) Standard quotation include barrier gate body, straight bar, push key control panel, two remote controllers, exclusive of LED light bar, loop detector, boom bracket and anti-collision mechanism (wave pressure sensor, PIR sensor): need to buy separately.
6) Optional housing color: dark yellow, onyx black, other color for optional
Technical specifications:
Model: WJCB02
Power supply: 220VAC 50Hz (accept customization)
Motor's power: 300W 220VAC
Max length of boom: 6m
Environment temperature:-35°C~+85°C
Protection class: IP54
Housing: 1.5mmor 2.0mm steel with painting
Spring: multi-spring balance
Remote control: 2 remote control tag with one receiver.
CB02H Series Boom Length and Speed Selection
|
Model |
WJCB02H |
||||
|
Running Speed |
0.9s~5s |
5s |
5s |
5s |
5s |
|
Boom Type |
Straight |
90° Folding |
180° Folding |
2 Fence |
3 Fence |
|
Max Boom Length |
3.5m~6m |
5m |
4m |
4.5m |
4m |
