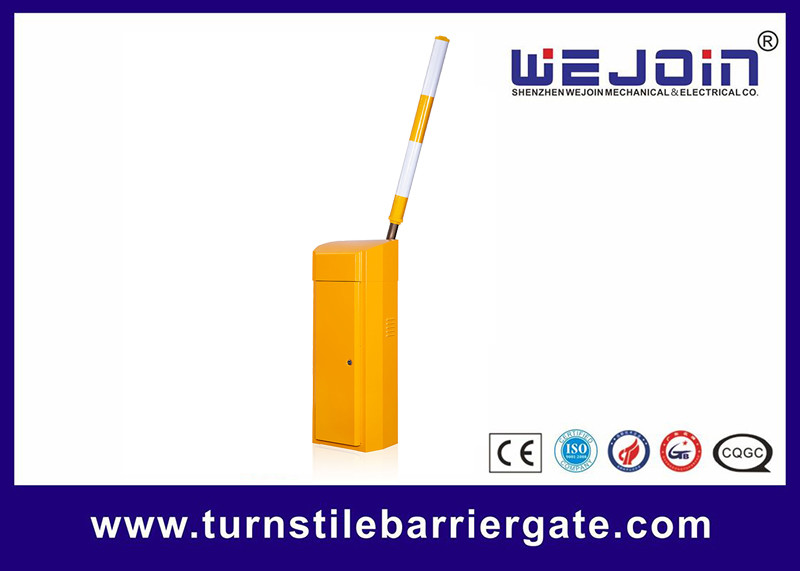

High speed straight arm barrier gate for car parking management
WEJOIN Commercial Servo Barrier Gate WJCB02
Barrier gate, also named as intelligent/electric vehicle road blocker, is a widely used machine in gate access control application.
Boom barrier gate is very important for an automatic car parking management system and other traffic project; this equipment widely uses for block the road, manage the access of the gate for all vehicles such as car, truck, bus even motorbike. Everyday, you can easy find barrier gate at everywhere, airport, highway, commercial building, shopping mall, factory, hospital, and so on.
Features:
1. This barrier gate is widely used for the facilities of parking lots, traffic or toll system, we don’t suggest for high way and other heavy duty application.
2. Arms can be chosen from 2 meters to 6 meters.
3. Manual handle can be used to open the arm in case power off.
4. All the process is soft without any noise and shaking.
5. This barrier gate has many input terminals for photocell, Airwave switch, loop detector, LED light bar, toll gate system and output terminals for lamp.
Description:
1) Fastest running speed can be 0.4 second (model WJCB02E, 0.4~0.9s adjustable)
2) Barrier gate life-span: >5,000,000 times
3) Suit application: indoor and outdoor parking system
4) Open/close method: by remote control, push key, manual handle
5) Max. 6mstraight arm with rubber bar
Max. 4.5 m folding arm with rubber bar
Max. 4m fence arm with rubber bar
6) Inclusive of arm and "push button" which opens/closes barrier
7) Standard quotation include barrier gate body, straight bar, push key control panel, two remote controllers, exclusive of LED light bar, loop detector, boom bracket and anti-collision mechanism (wave pressure sensor, PIR sensor): need to buy separately.
Technical specifications:
Model: WJCB02
Power supply: 220VAC 50Hz (accept customization)
Motor's power: 300W 220VAC
Max length of boom: 6m
Environment temperature:-35°C~+85°C
Protection class: IP54
Housing: 1.5mmor 2.0mm steel with painting
Spring: multi-spring balance
Remote control: 2 remote control tag with one receiver.
Net weight: 55kg
Ground weight: 75kg
Warranty: 1 year
CB02H Series Boom Length and Speed Selection
|
Model |
WJCB02H |
||||
|
Running Speed |
0.9s~5s |
5s |
5s |
5s |
5s |
|
Boom Type |
Straight |
90° Folding |
180° Folding |
2 Fence |
3 Fence |
|
Max Boom Length |
3.5m~6m |
5m |
4m |
4.5m |
4m |
