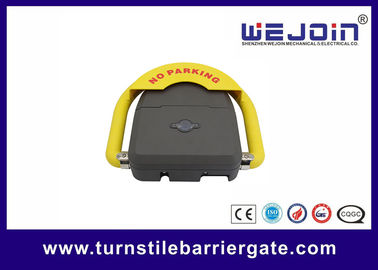

Automatic car park barrier Remote Control Car Parking Space Lock
Main Features
1) Compressive capacity can up to 2000KG
2) Self Locking
3) Waterproof
4) Power-off upon external resistance
5) Power shortage indication(lumination)
6) Reset after the alarm on an external force
7) An-theft protection
Functions & Features:
1. Known brand battery to support a stable power supply.
2. Aviation plug and connector are used to avert a short-circuit and water incursion.
3. A high strength, anti-press aluminum-made housing is capable of sustaining a five-ton truck, so tough to
break and NEVER get rusty.
4. Wholly sealed design, with an IP grade 68 makes totally dustproof and waterproof realistic.
5. Long-distance remote control function.
6. Product installation simplified, four pre-drilled holes at the bottom of the cabinet makes it easy to install.
7. Energy-saving; the battery is the best product in China and the power in it will last for half a year.
8. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing a short circuit; battery installation is easy.

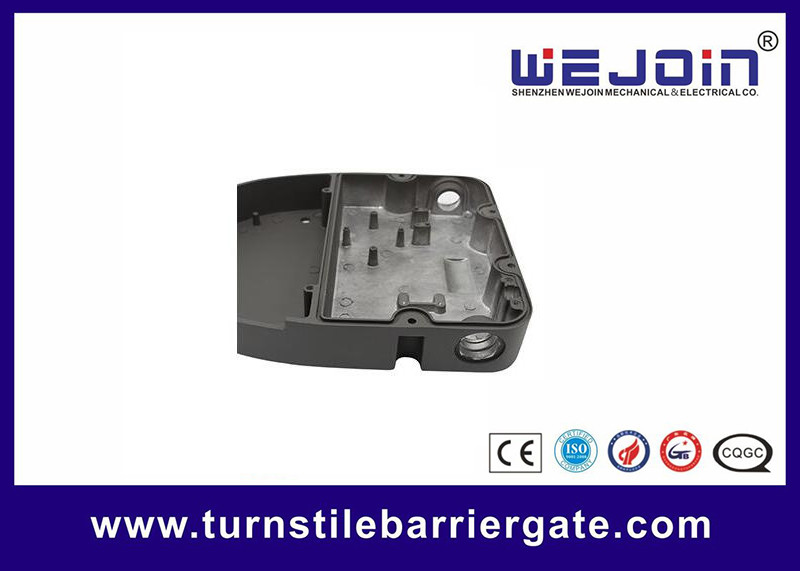

9. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.
10. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.
11. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses a remote control to put it horizontally.
12. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity and lesser friction.
13. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without a key.
Specification:
|
Model |
WJCS101 |
Net weight | 9kgs |
|
Remote control distance |
≥30m |
Battery Voltage | DC12V,7Ah |
|
Standard Voltage |
DC12V |
Operational Current | 0.4A |
|
Working Temperature |
-35℃～+55℃ |
Protection Grade | IP68 |
|
Vertical Position Height |
340mm |
Dimension | 357*370*82.5mm |
|
Max Bearing Weight |
5 t |
Running Time | 4s~6s |
