RFID Card Reader Barcode Scanner Fingerprint Face Recognition Turnstile Gate
Access Control System for Option

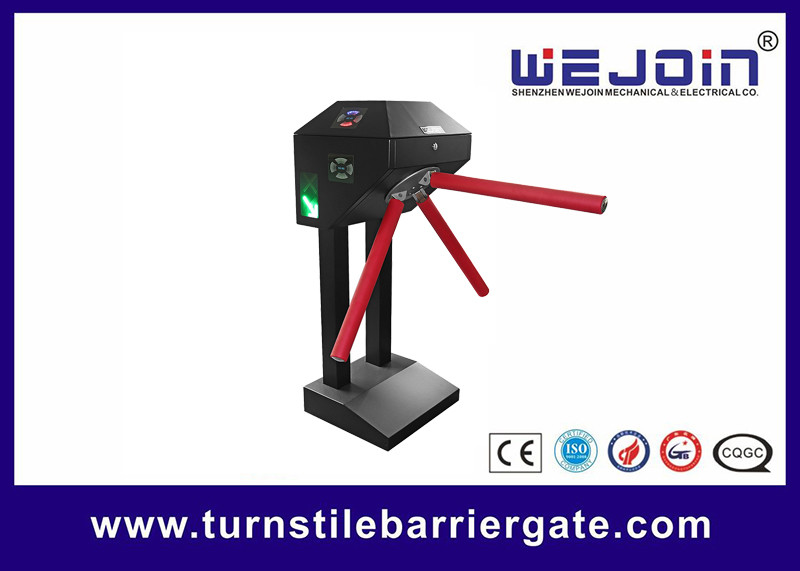

Our tripod turnstile can be installed in RFID, Mifare, Fingerprint, Biometric, ticket system,barcode, coin operated,counter for
access control.
Function and Features:
⑴. A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism
⑵. Passable for bi-direction
⑶. Self-locking within 5 seconds if there is no one passing after signal activation
⑷. Arm auto dropping when power off and manually put the arm up when power on
⑸ Person counter output is available to indicating passenger quantity; the pulse is 200MS
⑹. Able to avoid unauthorized access
⑺. Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation
⑻. Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with pulse between 200MS~500MS; EM signal should maintain connected when any emergency happens.
Specifications:
|
Model |
WJTS111 |
|||
|
Manual, Semi or Full-automatic |
Full-automatic |
|||
|
Material of Housing |
Iron with Powder |
|||
|
Thickness of Housing |
1.50mm |
|||
|
Dimension of Housing |
420×380×1050 |
|||
|
Length of Pole (out of housing) |
490mm |
|||
|
Net Weight |
35kg |
|||
|
Rotating Direction |
Double Direction |
|||
|
Power Supply |
220V±10%, 110V±10% |
|||
|
Rated Power |
36W |
|||
|
Driving Motor |
Brushless DC Motor |
|||
|
Input Interface |
dry contact with the pulse between 200ms~500ms |
|||
|
Transit Speed |
30~40 persons/min |
|||
|
Relative Humidity |
≤95% |
|||
