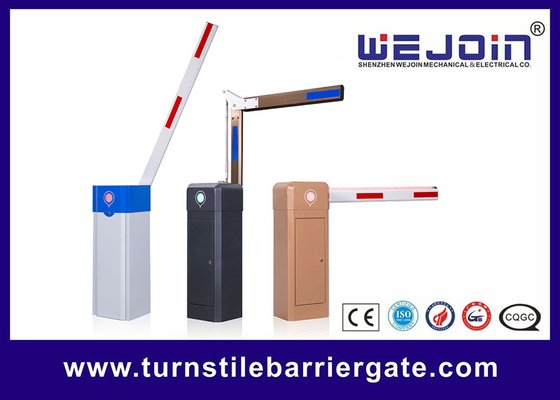

6 Million Cycles 3-5s 150W Automatic Barrier Gate

1 set

MOQ

negotiation

Price

6 Million Cycles 3-5s 150W Automatic Barrier Gate

Features Gallery Product Description Request A Quote

Features

Specifications

Boom Type: Straight Boom

Housing Color: White And Blue

Application: Parking Lot

Speed: 1-2s/3-5s Speed Adjustable

Boom Length: Max 6M (customized)

Arm Material: Aluminum Alloy

Highlight:

150W Parking Gate Barrier

,

Aluminum Alloy Boom Barrier Gate

Basic Infomation

Place of Origin: CHINA

Brand Name: WEJOIN

Certification: CE ISO SGS

Model Number: CB01SV

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 12 working days after payment received

Payment Terms: T/T, Western Union

Supply Ability: 10000 sets/month

Gallery

6 Million Cycles 3-5s 150W Automatic Barrier Gate

Product Description

parking gate barrier for automatic parking system

Product Description:
Barrier gate, also named as intelligent/electric vehicle road blocker, is a widely used machine in gate access control application.
Boom barrier gate is very important for an automatic car parking management system and other traffic projects; this equipment widely uses for block the road, manage the access of the gate for all vehicles such as cars, trucks, bus even motorbike. Every day, you can easily find a barrier gate everywhere, airport, highway, commercial building, shopping mall, factory, hospital, and so on.

Vehicle Barrier Gate Functions & Features

1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for a more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.

Technical Data

Model	WJCB01SV-H	WJCB01SV-I
Running Speed	1/1.5/2S	3/4/5S	5S	5S	5S	5S
Boom-Type	Straight	Straight	90° Folding	180° Folding	2 Fence	3 Fence
Max Boom Length	3.5M~4.5M	4.5M~6M	5M	4M	4.5M	4M
Input Voltage	AC220V±10%, AC110V±10%
Frequency	50/60HZ
Motor Voltage	DC310V
Enclosure Rating	IP54
Working Temperature	-35°C ~ +85°C
MTBF	6000000 times
Traffic Flow Application	24 hours of uninterrupted operation
Max Motor Power	150W
Max Motor Speed	36r/min
Max Torque	240N.m

6 Million Cycles 3-5s 150W Automatic Barrier Gate 0
