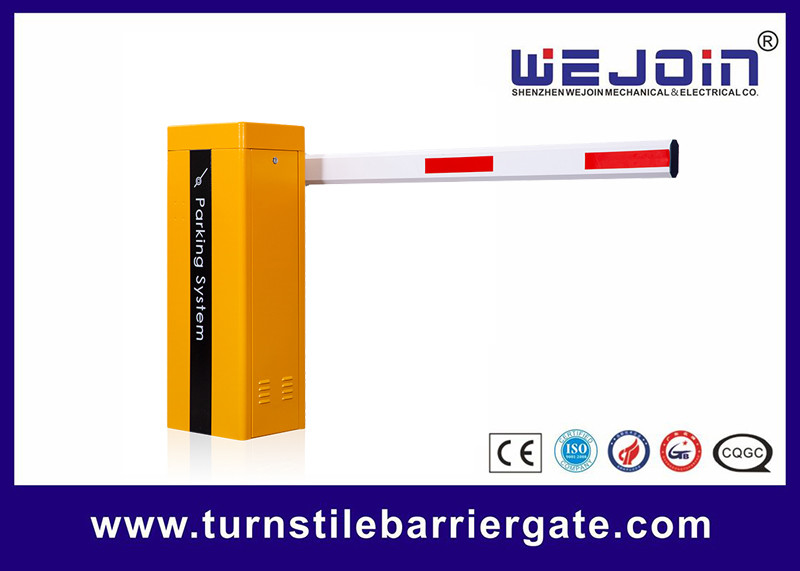

Intelligent straight boom parking barrier / automatic barrier gate
Features:
1. Can work continuously, it will not be stopped because of the temperature.
2. In case of power failure, the barrier can be opened and closed manually after the release clutch.
3.Can be connected with photocell.
| Model | WJDZE1 (speed 1.8~6s adjustable) | |||||||
| Running Speed | 1.8s | 3S | 4S | 5/6S | 5/6S | 5/6S | 5/6S | 5/6S |
| Boom-Type | Straight | Straight | Straight | Straight | 90° Folding | 180° Folding | 2 Fence | 3 Fence |
| Max Boom Length | 4m | 4.5M | 5M | 6M | 5M | 4M | 4.5M | 4M |
| Input Voltage | AC220V±10%, AC110V±10% | |||||||
| Frequency | 50/60HZ | |||||||
| Motor Voltage | DC310V | |||||||
| Enclosure Rating | IP54 | |||||||
| Working Temperature | -35°C ~ +85°C | |||||||
| MTBF | 3 million times | |||||||
| Traffic Flow Application | 24 hours of uninterrupted operation | |||||||
| Max Motor Power | 120W | |||||||
| Max Motor Speed | 24r/min | |||||||
| Max Torque | 240N.m | |||||||
Vehicle Barrier Gate Functions & Features
1. No clutch design: open the barrier gate by manual handwheel when the power of.
2. No limit switch design: the motor can detect the boom position automatically.
3. Bi-direction boom holder design: left- installation and right-installation can be exchanged easily and quickly.
4. Self-detect after power-on, open/close speed is adjustable.
5. With auto-reversing on obstruction function.
6. Infrared photocell interface and Loop detector interface are available.
7 . Built-in delay auto-closing function ,coordinated with counting function .
8. With auto-aging test function.
9. NO / NC wire control signal input is optional.
WEJOIN's Main Advantages
1.The global leading company for barrier gate
2.Master of core technology and innovation
3.The intelligent quality manufacturing process and automatic flexible production
4.The global advanced manufacturing process and testing equipment
5.Servo, variable frequency, double speed,bi-direction motor, and other leading technique
6. High speed and low speed coexist in motor
7.Integral service network covering first-tier and second-tier cities, and more under the construction service network
