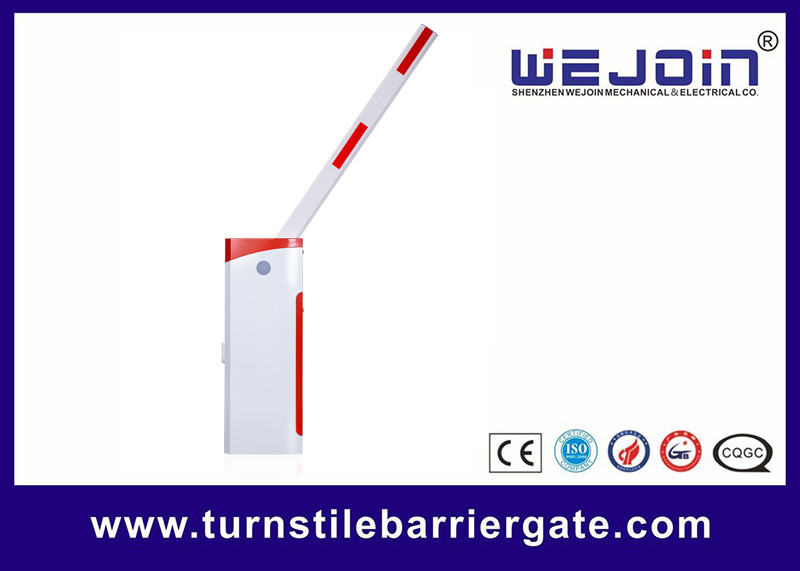

Security Straight Boom Barrier Gate For Car Parking Management Control System
Product information
The DZ201S intelligent barrier gate is one type of our company’s products with the latest technological design to realize automatic and intelligent operation. Furthermore, the unique clutch device and the balance device has made the barrier gate become more reliable.
Product series and data
1.DZ-201S --slow speed straight boom
Boom length L≤4.5m
Operating time: 6s
Center vertical high: 0.83m
2.DZ-201S--slow speed straight boom
Boom length L≤4.5m
Operating time: 3s
Center vertical high: 0.83m
Functions and features
1. Manual advanced clutch, to rise up the boom by hand when power off, it will auto-reset when power on.
2. Adopts the compression spring for safety precaution to avoid the accidents caused by the spring broken.
3. Three buttons to control the boom to rise up or fall or stop.
4. Auto-reversing when meets obstacles.
5. Available for the internal and external loop detector.
6. Opening, closing, and stopping to control the interface.
7. Infrared photocell for anti-bumping.
8. RS485 communicational module to connect the computer.
9. Traffic lights interface.
10. Wire control and remote control.
11. Auto warming up when the system below zero degrees centigrade.
Spring selection
| number | Boom length | Spring parameter(mm) | Hole position(1or 2) |
| 1 | 2.5 <L<3.5 | D=4.5 | Hole2 |
| 2 | 3.5≤L≤4.0 | D=5.5 | Hole1 |
| 3 | 4.0<L<5.5 | D=6.5 | Hole2 |
| 4 | 5.5≤L≤6.0 | D=6.5 | Hole1 |
