parking barrier die-casting aluminum alloy motor and extraordinary structural design
Product information

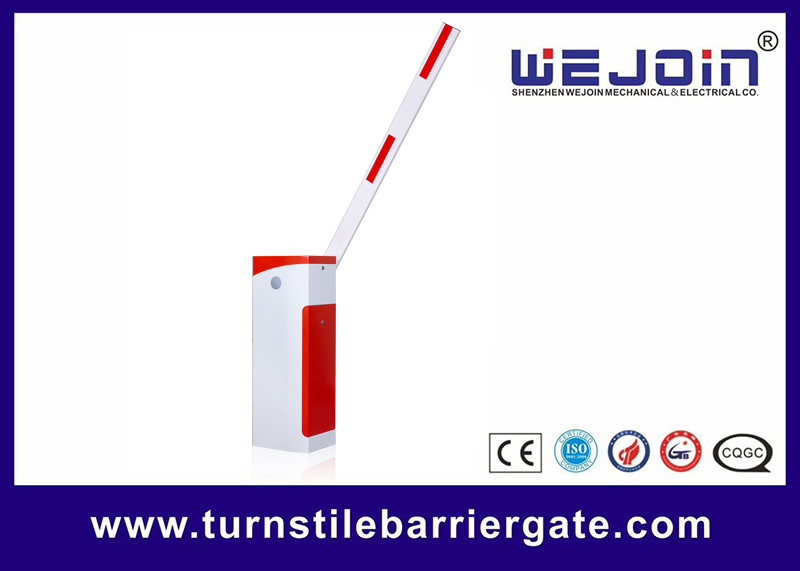

The DZ201S intelligent barrier gate is one type of our company’s products with the latest technological design to realize automatic and intelligent operation. It offers not only a long-life cycle, high reliability, and quality, but also reduces the difficulty of equipment maintenance, it is an ideal choice for vehicle entrance control management.
Working environment and data
1. Mechanism temperature -25℃+85℃
2. Control board temperature -20+85℃
3. Power supply 220V±10% 50/60 Hz
110V±10% 50/60 Hz
Spring selection
| Boom length | Spring parameter(mm) | Hole position(1or 2) |
| 2.5 <L<3.5 | D=4.5 | Hole2 |
| 3.5≤L≤4.0 | D=5.5 | Hole1 |
| 4.0<L<5.5 | D=6.5 | Hole2 |
| 5.5≤L≤6.0 | D=6.5 | Hole1 |
Functions and features
1. Manual advanced clutch, to rise up the boom by hand when power off, it will auto-reset when power on.
2. Adopts the compression spring for safety precaution to avoid the accidents caused by the spring broken.
3. Three buttons to control the boom to rise up or fall or stop.
4. Auto-reversing when meets obstacles.
5. Available for the internal and external loop detector.
6. Opening, closing, and stopping to control the interface.
7. Infrared photocell for anti-bumping.
8. RS485 communicational module to connect the computer.
9. Traffic lights interface.
10. Wire control and remote control.
11. Auto warming up when the system below zero degrees centigrade.
