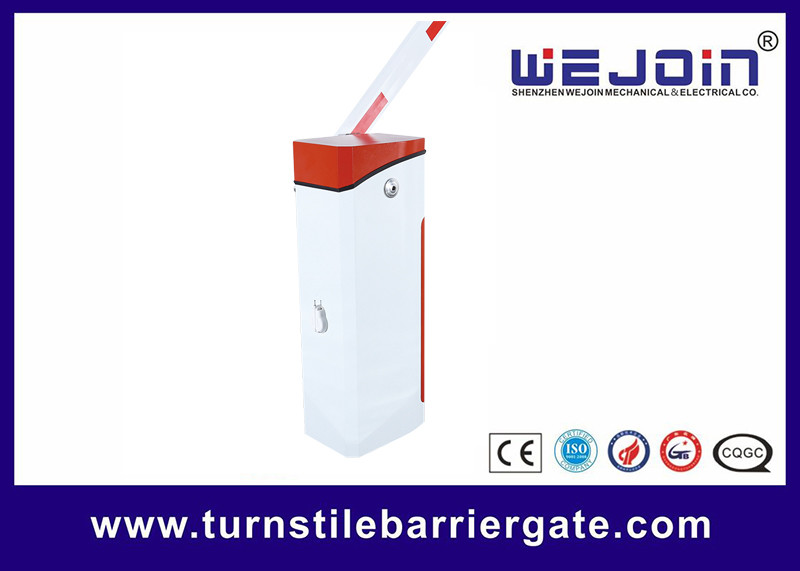

Automatic Safety Barrier Gate Series for Parking Lot auto barrier gate system
Working environment and data
1. Mechanism temperature -25℃+85℃
2. Control board temperature -20+85℃
3. Power supply 220V±10% 50/60 Hz
110V±10% 50/60 Hz
Functions and features
1.Manual release
2.Machine core with compression spring effectively avoids the accidents caused by spring broken.
3.Die-casting aluminum alloy motor, precision, and good at thermal radiating.
4.Motor cooling fan, solving the problem of heat-protection
5.Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
6.reversing on obstacle
7.Auto-closing
8.Support the infrared photocell for anti-bumping(optional)
9.Support for the external and internal vehicle loop detector
10.traffic light interface
11.wire control(switch signal)/remote control(418Hz)
12.RS485 communicational module to realize the intelligent management for the passing
Troubleshooting
| Trouble | Cause | Troubleshooting |
| Release device of Barrier is doesn’t work | 1, Operating handle is broken | 1, Change the handle |
| 2, Worm gears are jammed | 2, Rotate the pinion |
