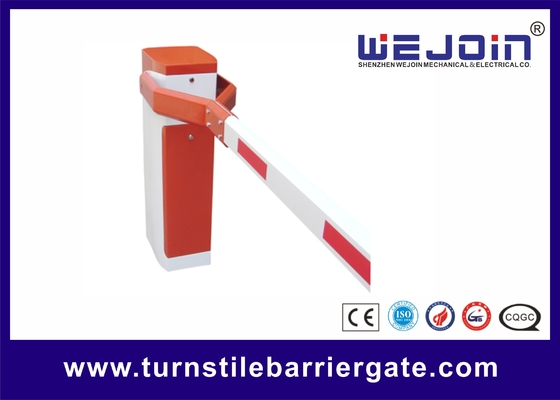

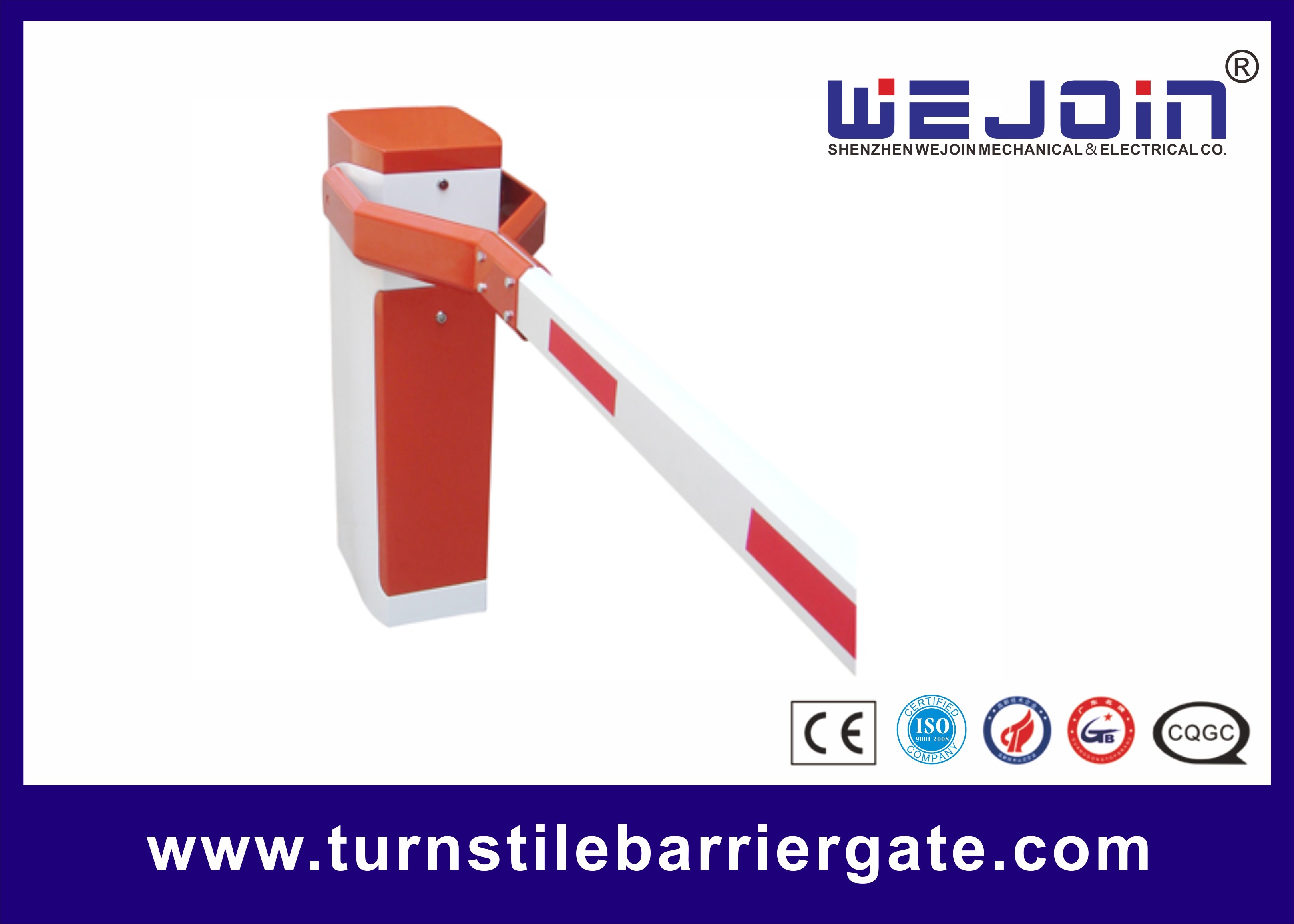

6 Meters Straight Arm Smart Parking System Automatic Barrier
Product information
The DZ203 intelligent barrier gate is one type of our company’s products with the latest technological design to realize automatic and intelligent operation. Furthermore, the unique clutch device and the balance device have made the barrier gate become more reliable.
Functions and features
Unique appearance, nice color accomplish the modernizing housing
1.Manual release to adjust the machine when power off
2.Machine core with compression spring effectively avoids the accidents caused by spring broken.
3.Die-casting aluminum alloy motor, precision, and good at thermal radiating.
4.Motor cooling fan, solving the problem of heat-protection
5.Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
6.reversing on an obstacle
7.Auto-closing
8.Support the infrared photocell for anti-bumping(optional)
9.support for the external and internal vehicle loop detector
10.traffic light interface
11.wire control(switch signal)/remote control(418Hz)
12.RS485 communicational module to realize the intelligent management for the passing
13.Bi-direction passing can be installed both on the left and right side
14.LED display
15.Integrated LED traffic light
Troubleshooting
| Trouble | Cause | Troubleshooting |
| The barrier can not locate accurately | 1, Distance of limit switch is too large | 1, Adjust the position of the limit switch |
| 2, Limit switch is wrong | 2, Change limit switch | |
| 3, Magnetic-stell’s position is wrong | 3, Re-adjust the position |
Working environment and data
1. Mechanism temperature -25℃+85℃
2. Control board temperature -20+85℃
3. Power supply 220V±10% 50/60 Hz
110V±10% 50/60 Hz
4.Rated power 120W
5.Relative humidity ≤90%
6.Remote control ≥30M
7.Net weigh 60 Kg
8. Max boom length:6m
9. Motor rotational speed:6s
