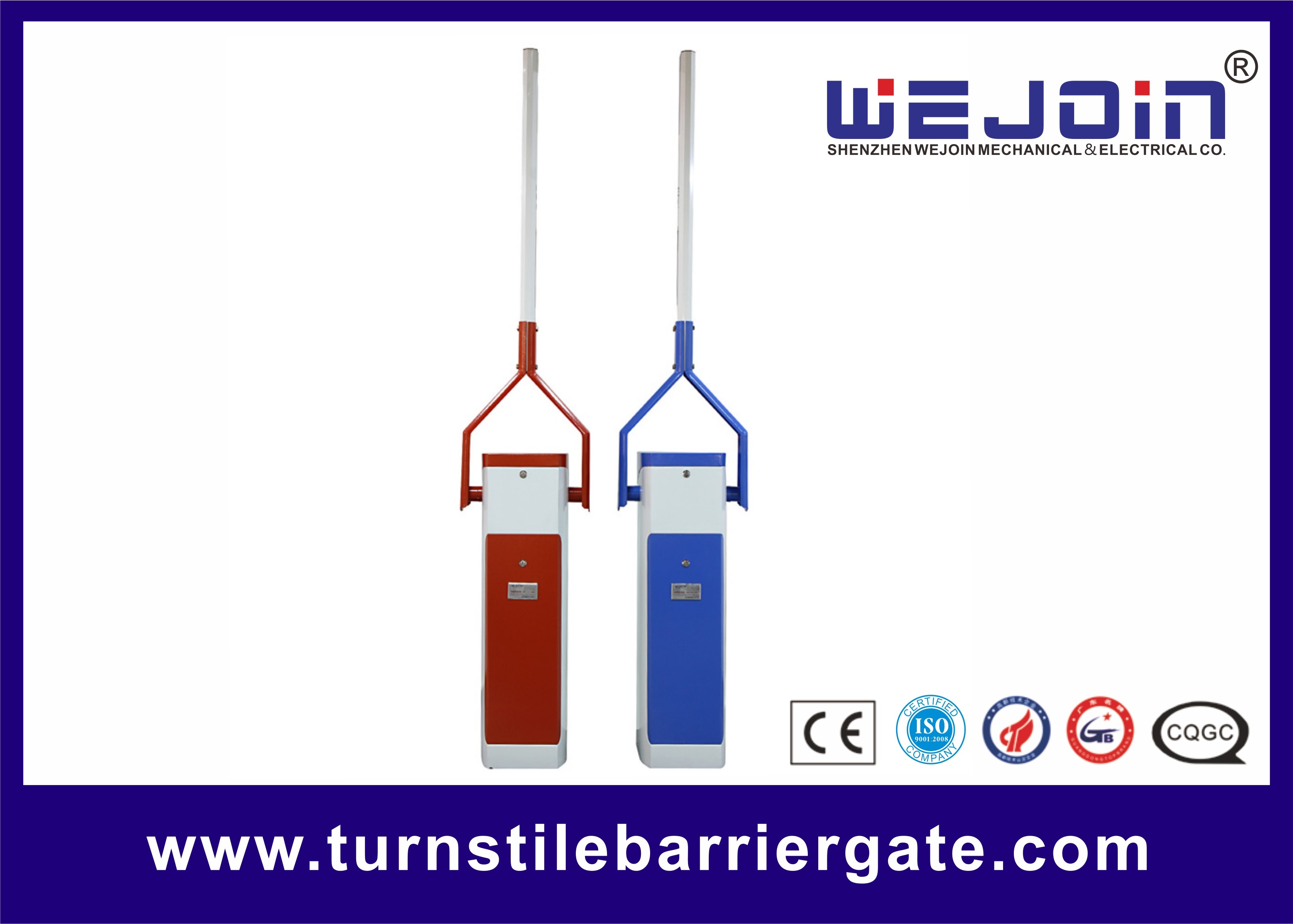

Boom Barrier Gate Outdoor Automatic Boom Vehicle Barrier Gate
Functions and features
1. Outdoor Waterproof: Multi-Environment adapted.
2. Resistance Reaction: Lift when the outer force applied.
3. Multi-controlling: Remotely, manually, and payment option.
4. Auto Bounce-back Function: Prevent vehicle from smashing.
5. High Integrated Feature: Accessories Available and Compatible.
6. Open-Priority: Remotely Lift in any case to encounter an emergency.
7. Rubber Texture Strips Surrounded: Precaution to any possible damage.
8. Angle Sensor: Instantly boom position capture, high precision, steady movement.
Working environment and data
1. Mechanism temperature -25℃+85℃
2. Control board temperature -20+85℃
3. Power supply 220V±10% 50/60 Hz
110V±10% 50/60 Hz
4.Rated power 120W
5.Relative humidity ≤90%
6.Remote control ≥30M
7.Net weigh 60 Kg
8. Max boom length:6m
9. Motor rotational speed:6s
Troubleshooting
| Trouble | Cause | Troubleshooting |
| The barrier can not locate accurately | 1, Distance of limit switch is too large | 1, Adjust the position of the limit switch |
| 2, Limit switch is wrong | 2, Change limit switch | |
| 3, Magnetic-stell’s position is wrong | 3, Re-adjust the position |
