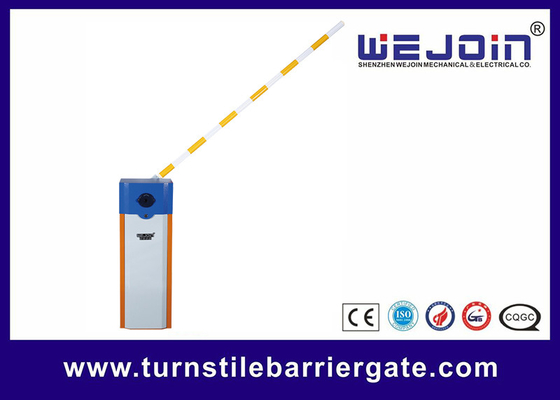

remote control Auto-closing straight parking entrance barrier gate
Features:
1.AC motor
2.No limit switch design minimizes mechanical wear and allowed a superb operating lifetime.
3.Weather resistant with plastic coating.
4.Arm length can be customized according to the site.
5.Fence arm barrier gate especially useful for longer arms where there is a big opening space underneath the arm.
6.Fence arm effectively block pedestrian trying to pass through from underneath.
Specifications:
Manual release
Machine core with compression spring effectively avoids the accidents caused by spring breaking
Die-casting aluminum alloy motor, precision and good at thermal radiating
Motor cooling fan, solving the problem of heat-protection
Double safety limit switches
Reversing on obstacle
Auto-closing
Supports the infrared photocell for anti-bumping function (optional)
Supports the external and internal vehicle loop detector (optional)
Traffic light interface
Wire control (switch signal)/remote control (418MHz)
RS485 communication module (optional)
Specifications
|
Model Item |
101-56 |
| Running time | 6sec |
| Boom type |
3 fencing |
| Max boom length | 4m |
| Voltage | 220V±10%, 110V±10% |
| Frequency |
50/60 Hz |
|
Motor voltage |
220V |
PARAMETERS:
Running time: 1, 3, and 6s
Boom type: straight
Maximum boom length: 3, 4.5, and 6m
Boom dimension: 45 x 80mm
Boom weight: 3, 4.5, and 6kg
Voltage: 220V ±10%, 110V ±10%
Frequency: 50/60Hz
Motor voltage: 220V
Power: 120W
Working temperature: -40°c to 75°c degree Celsius
