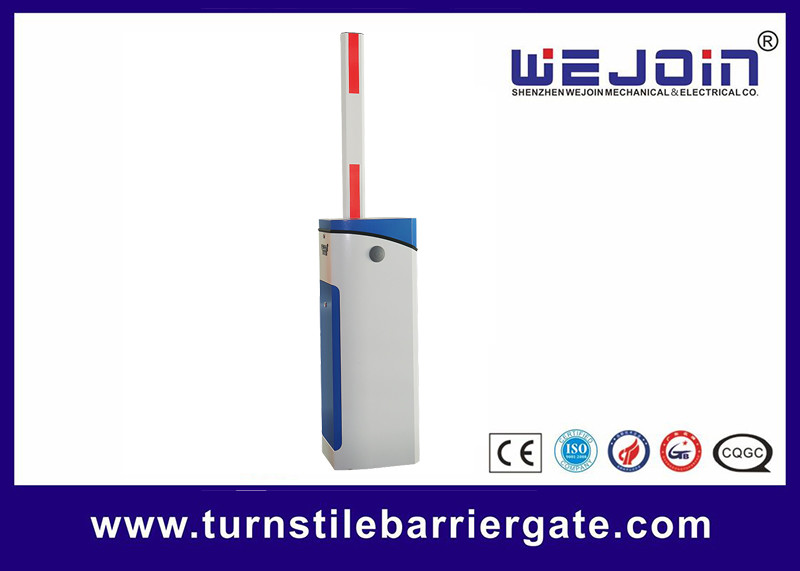

access control high-speed straight arm barrier gate for toll system
Product information
The DZ201 intelligent barrier gate is one type of our company’s products with the latest technological design to realize automatic and intelligent operation. Furthermore, the unique clutch device and the balance device have made the barrier gate become more reliable.
Functions and features
1.Manual release to adjust the machine when power off
2.Machine core with compression spring effectively avoids the accidents caused by spring break.
3.Die-casting aluminum alloy motor, precision, and good at thermal radiating.
4.Motor cooling fan, solving the problem of heat-protection
5.Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
6.reversing on an obstacle
7.Auto-closing
8.Support the infrared photocell for anti-bumping(optional)
9.support for the external and internal vehicle loop detector
Working environment and data
| Voltage | 220V±10%, 110V±10% |
| Frequency | 50/60 Hz |
| Motor voltage | 220V |
| power | 80W |
| Working temperature |
-35centigrade +75centigrade |
| Protection grade | IP44 |
The left and the right installation
For the client convenience, the following figures are the left and the right installation
For the left installation, the housing installs on the left side of the door, and the arm stretches to the right, the boom is inside the door.
For the right installation, the housing installs on the right side of the door, and the arm stretches to the left, the boom is inside the door.
