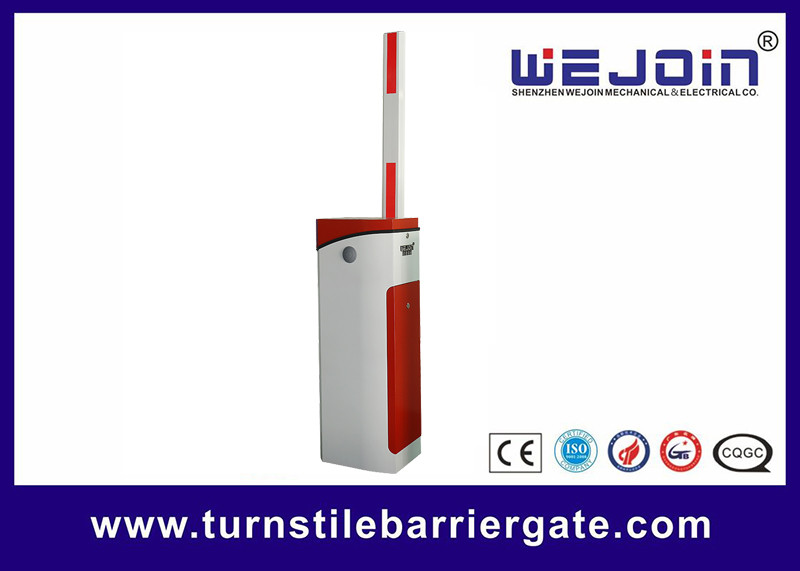

Remote control boom barrier with access control for parking lot
Product information
Barrier gates offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this barrier gate perfectly to your lobby or branding.
Working environment and data
| Voltage | 220V±10%, 110V±10% |
| Frequency | 50/60 Hz |
| Motor voltage | 220V |
| power | 80W |
| Working temperature | -35centigrade +75centigrade |
| Protection grade |
IP44 |
Functions and features
1. Advance manual release
2. Full molding design for all the main parts, cast by aluminum alloy, realizing precisely match for each component, realizing non rusting and corrosion-resistant in atrocious weather.
3. Boom can rise and fall on left/right side by setting on the same machine
4. no need to change the balance spring when the boom shorter than 6 meters
5. Adopt the third generation WEJOIN machine core
6. Support the infrared photocell for anti-bumping(optional)
7. Support for the external and internal vehicle loop detector
8. Auto warming-up, suitable for cold environment
9. Auto-closing
Mechanical adjustment and usage
1. The barrier gate has well set before delivery; you can make further adjustments if needed (make sure to cut off the power).
2. Disassembly of the cap
2.1 Unscrew the two screws on the cap
2.2 Unscrew the inside screw in the top side cap
2.3 Take off the cap
