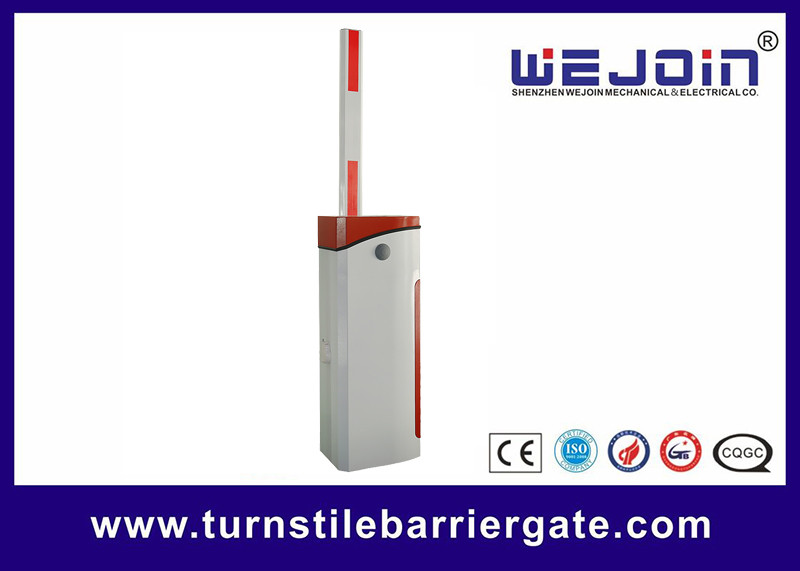

Straight arm automatic boom gate
Product information
The DZ201 intelligent barrier gate is one type of our company’s products with the latest technological design to realize automatic and intelligent operation. Furthermore, the unique clutch device and the balance device have made the barrier gate become more reliable.
Functions and features
1.- Housing color: red, blue (optional)
2.- Boom arm direction can be chosen leftward to rightward.
3.- Auto warming up, suitable for a cold environment.
4- Controlling way: wireless or wiring multiple push-button for OPEN, CLOSE, STOP function.
Mechanical adjustment and usage
1. When the barrier is at the up limit position
1.1 If the boom is not vertical, as figure 7 shows.
A. Adjust the shock absorption screw1 to reduce the pressure of the shock absorption cushion, after this operation, if it is vertical, then screw tight the screw, if not, then repeat the operation.
B. Loosen the screws on the end of the connecting rod, adjust the connecting rod to make the boom vertical, then fix the boom.
1.2 The boom vibrates too much
Rotate the balance spring screw clockwise to increase the tension of the spring.
Working environment and data
| Voltage | 220V±10%, 110V±10% |
| Frequency | 50/60 Hz |
| Motor voltage | 220V |
| power | 80W |
| Protection grade | IP44 |
| Net weight | 60 Kg |
