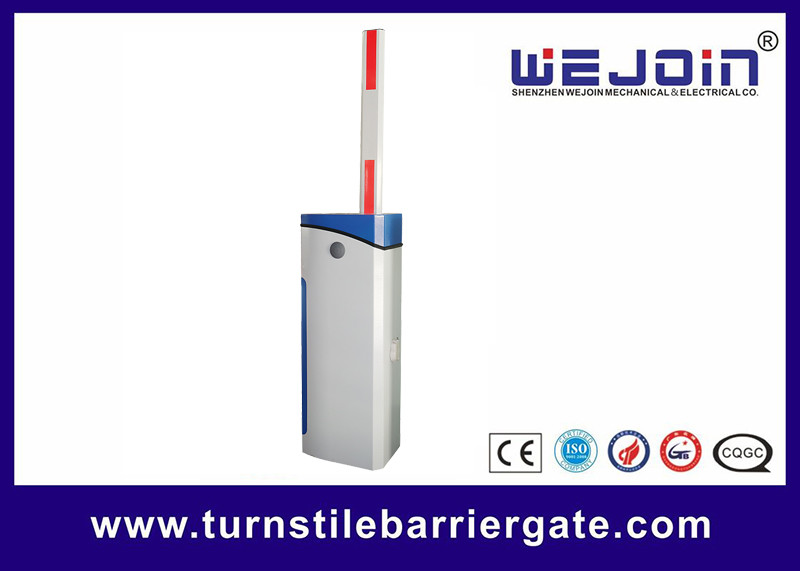

parking lot security boom intelligent barrier gate for commercial Plaza
Mechanical adjustment and usage
1. When the barrier is at the up limit position
1.1 If the boom is not vertical, as figure 7 shows.
A. Adjust the shock absorption screw1 to reduce the pressure of the shock absorption cushion, after this operation, if it is vertical, then screw tight the screw, if not, then repeat the operation.
B. Loosen the screws on the end of the connecting rod, adjust the connecting rod to make the boom vertical, then fix the boom.
1.2 The boom vibrates too much
Rotate the balance spring screw clockwise to increase the tension of the spring.
WEJOIN's Main Advantages
1.The global leading company for barrier gate
2.Master of core technology and innovation
3.The intelligent quality manufacturing process and automatic flexible production
4.The global advanced manufacturing process and testing equipment
5.Servo, variable frequency, double speed,bi-direction motor, and other leading technique
6. High speed and low speed coexist in motor
7.Integral service network covering first-tier and second-tier cities, and more under the construction service network
Packing list
| item | specification | quantity | notes |
| hexagon | M12*70 | 2 | fixing the boom |
| pressing board | 1 | ||
| bar tray cover | |||
| self-tapping screw |
ST4*16 |
4 | fixing the bar tray cover |
| self-tapping screw |
ST3*10 |
2 | fixing the bar tray cover |
| housing pressing board | 2 | fixing the housing | |
| expansion bolts | M16*150 | 4 | fixing the housing |
| support boom | |||
| expansion bolts | M8 | 4 | fixing the support boom |
| inner hexagon |
M8*35 |
4 | fixing the support board |
| clutch handle | 1 | ||
| key | 2 | ||
| balance-spring | 1 | for the straight boom | |
| remote controller | |||
| manual | |||
| RS485 converter | optional | ||
| CD | optional | ||
| communicational module | optional |
