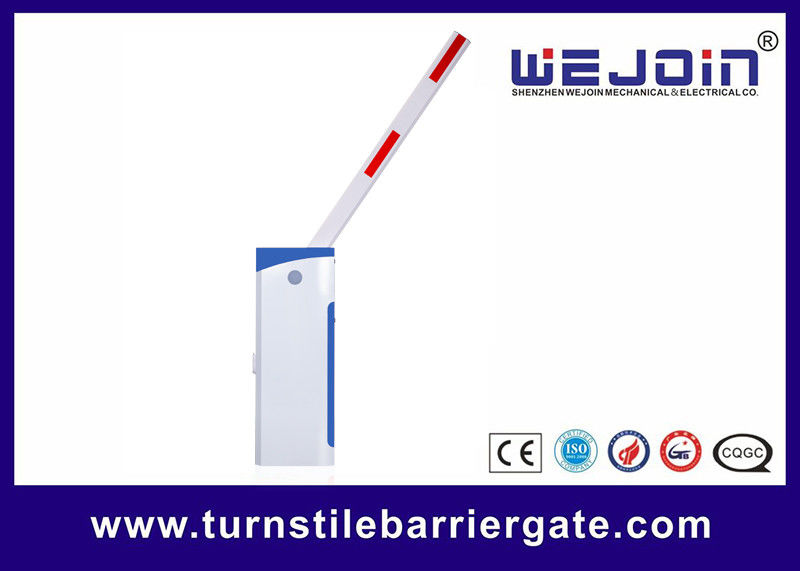

Parking Barrier Gate
Parking Barrier Gate provides an economical, secure, and convenient solution of stopping unauthorized vehicles or giving access to an authorized vehicle, it is the right super economic choice for your parking of both industrial and residential. It is durable, accurate, flexible, and safe, and of course, you can afford it thanks to its super economic design.
Packing list
| item | specification | quantity | notes |
| hexagon | M12*70 | 2 | fixing the boom |
| pressing board | 1 | ||
| bar tray cover | |||
| self-tapping screw |
ST4*16 |
4 | fixing the bar tray cover |
| self-tapping screw |
ST3*10 |
2 | fixing the bar tray cover |
| housing pressing board | 2 | fixing the housing | |
| expansion bolts | M16*150 | 4 | fixing the housing |
| support boom | |||
| expansion bolts | M8 | 4 | fixing the support boom |
| inner hexagon |
M8*35 |
4 | fixing the support board |
| clutch handle | 1 | ||
| key | 2 | ||
| balance-spring | 1 | for the straight boom | |
| remote controller | |||
| manual |
Mechanical adjustment and usage
1. When the barrier is at the up limit position
1.1 If the boom is not vertical, as figure 7 shows.
A. Adjust the shock absorption screw1 to reduce the pressure of the shock absorption cushion, after this operation, if it is vertical, then screw tight the screw, if not, then repeat the operation.
B. Loosen the screws on the end of the connecting rod, adjust the connecting rod to make the boom vertical, then fix the boom.
1.2 The boom vibrates too much
Rotate the balance spring screw clockwise to increase the tension of the spring.
