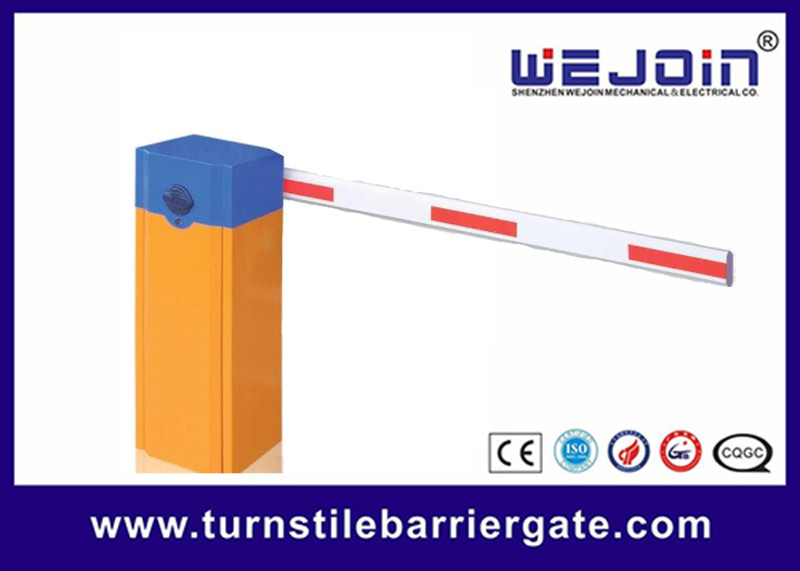

Parking Barrier Gate Toll Gate for Parking Barrier Highway Toll Station
Product information
The DZ101 intelligent barrier gate is one type of our company’s products with the latest technological design to realize automatic and intelligent operation. Furthermore, the unique clutch device and the balance device have made the barrier gate become more reliable.
Applications:
A boom gate, also known as a boom barrier, is a bar, or pole pivoted to allow the boom to block vehicular access through a controlled point. Typically the tip of a boom gate rises in a vertical arc to a near-vertical position. Boom gates have often paired either end to end, or offset appropriately to block traffic in both directions. It can be used for highway toll, parking system, factory gate, and so on.
Specifications
|
Model |
WJDZ101 |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
80W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
60kgs |
|
Speed |
1S |
|
Max boom length |
3 meters |
Functions & Features:
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
