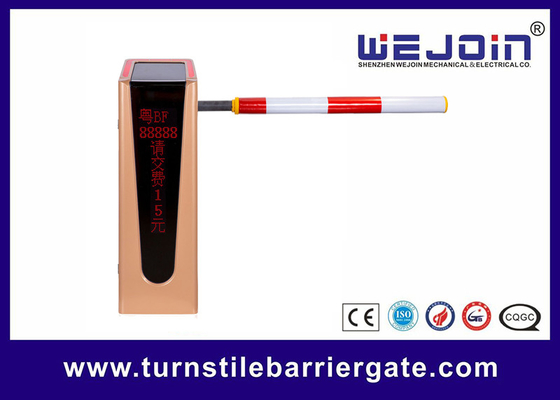

Modularized structure design parking barrier gate with foam round boom
Parking Barrier Gate Brief Introduction:
CB02 Commercial DC Barrier Gate
MTBF: ≥10 million opening and closing cycles
It can be equipped with CB02E(0.6-2S), CB02H(0.9-5S), and CB02I(4-8S)mechanism
Left-installation and right-installation can be exchanged
Super torque, High precise control, Three spring balance mechanism
Alarm against abnormal lifting boom
Support 24-hour continuous operation without heating protection
LCD function display controller
Electronic clutch design
Speed will reduce when the boom moves to the limited position
RS485 communication, TCP/IP network port
A DC12V power supply is optional
Parking Barrier Gate Features:
1. DC brushless motor with frequency conversion control, allows for a smooth trip of the boom.
2. Superior performance, which utilizes the updated electronic control and machinery processing technology, has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat, and low noise.
3. Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4. Three tension spring crank transmission design, for a more stable and reliable structure. (patented technology)
5. No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
6. Reversing more sensitivity and reacting faster when countering obstacles.
7. With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.
8. LCD display controller, more humanized operation, and setting.
9. NO/NC wire control signal input is optional.
10. Integrated RS485 communication, infrared photocell, loop detector interface, radar module, and more secondary development.
Technical Data
