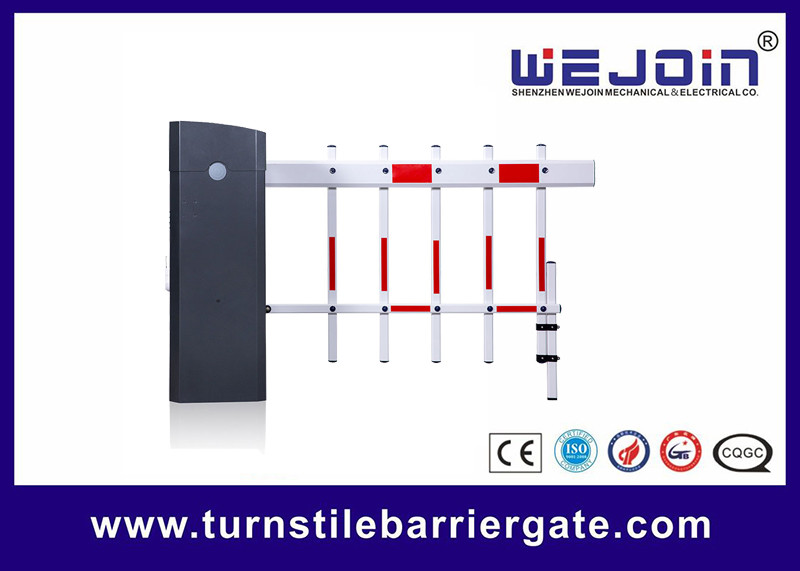

Two Fence Boom Barrier Traffic Barrier Automatic Car Parking Barrier gate
Functions & Features:
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for a more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). Reversing more sensitivity and reacting faster when encountering obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
WEJOIN's Main Advantages
1.The global leading company for barrier gate
2.Master of core technology and innovation
3.The intelligent quality manufacturing process and automatic flexible production
4.The global advanced manufacturing process and testing equipment
5.Servo, variable frequency, double speed,bi-direction motor, and other leading technique
6. High speed and low speed coexist in motor
7.Integral service network covering first-tier and second-tier cities, and more under the construction service network
Technical Data:
| Working temperature (motor) | -35°C~+85°C |
| Working Power | 220V±10%,110V±10% |
| Motor Power | 150W MAX |
| Humidity | <90%RH |
| Distance of remote control | L≥30M |
| Insulation Grade | F |
