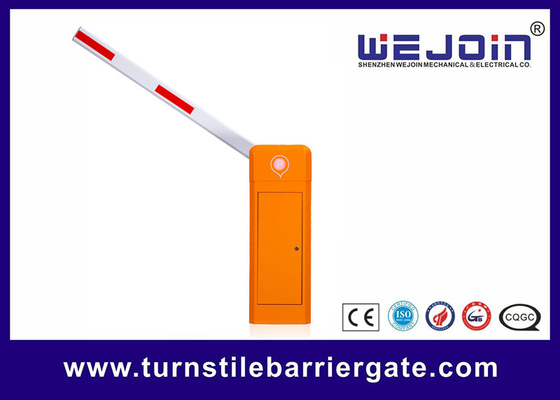

Aluminum arm parking arm barrier with optional lights/bumper strips
CB01SV Series Boom Length and Speed Selection
|
Model |
CB01SV-H (1-2S) |
|
|
Boom-Type |
Straight/Foam Round Boom |
|
|
Boom Length |
≤3M |
≤4M |
|
Running Speed |
1/1.5/2S |
1.5/2S |
Technical data:
1. Working Temperature: -35℃~+85℃
2. Input Voltage: 220VAC±10%, 110VAC±10%
3. Max Motor Power: 150W
4. Humidity: ≤90%
5. The distance of Remote Control: ≥30m
6. Insulation Grade: F
7. Running Speed and Max Boom Length:
CB01SV-H: 1/1.5/2S, max boom length: 4m straight boom
CB01SV-I: 3/4/5S, max boom length: 6m straight boom, 4.5m two-fence boom, 4m three-fence boom.
Boom Barrier Brief Introduction
CB01SV high-volume automatic barrier gate offers a direct drive motor and stainless steel housing, which is durable and rust-resistant in different climates as well as tropical salt-water environments. These parking barriers gate offers multiple inputs/outputs, open/close speed selection, and auto-reverse upon obstruction. Red/green illuminated panels provide additional stop/go guidance to Drivers.
The optional breakaway release arm minimizes damage to the motor and gate in case a vehicle drives into the barrier arm. The lightweight aluminum arm requires no special tools for installation. With slim profiles, this barrier gate system is perfect for narrow spaces and high-volume applications.
