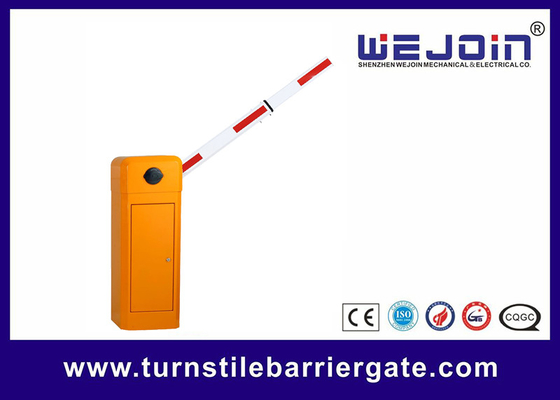

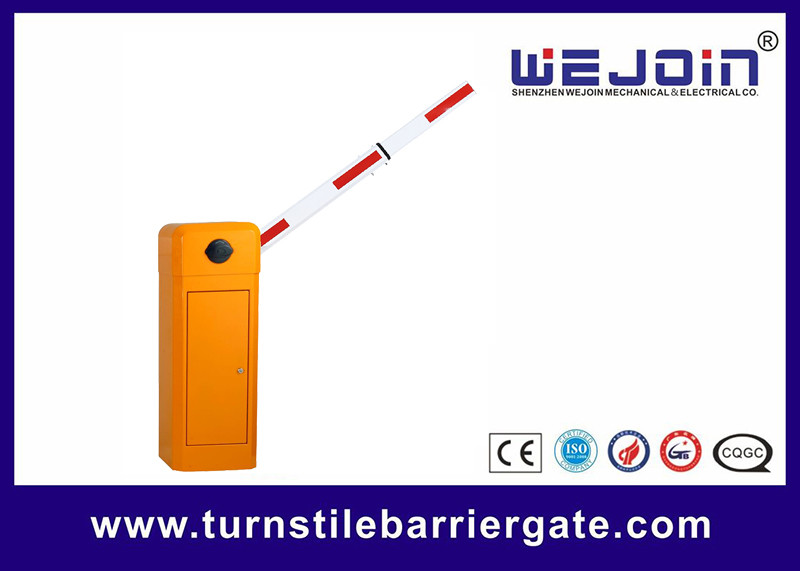

High-reliability SUS304 stainless steel barrier boom gate for car parking
Product information
This product uses the new mold designing technology, mold stamping, die casting technology, and no clutch designing. And the quality is more reliable. The mechanism uses the gear worm and cranks link structure, and the boom moves steady, and easy and quick maintenance.
Functions & Features:
1. Open the barrier gate by the motor wheel when power is off and automatic locking when power on
2. Balanced boom running with a motor transmission of cranks and shafts
3. Remote control to operate the barrier gate
4. Auto-reverse when the boom meets an obstruction
5. Infrared photocells connector is available
6. Loop detector connector is available
Motor speed and boom type
|
Boom type |
Boom length (M) |
Opening time(S) |
|
Straight boom |
6M≥L＞4.5M |
6S |
|
4.5M≥L＞3M |
3S |
|
|
3M≥L |
1.5S |
|
|
Articulated boom, 90 degree |
5M≥L＞3M |
6S |
|
3M≥L |
3S |
|
|
Articulated boom, 180 degree |
5M≥L＞3M |
6S |
|
3M≥L |
3S |
|
|
Fence boom, two-level |
4.5M≥L |
6S |
Working environment and data
1. Mechanism temperature: -25℃+85℃
2. Control board temperature: -20+85℃
3. Power supply: 220V±10%, 50/60 Hz, 110V±10% 50/60 Hz
4. Rated power: 120W
5. Relative humidity: ≤90%
6. Remote control: ≥30M
7. Net weight: 60 Kg
