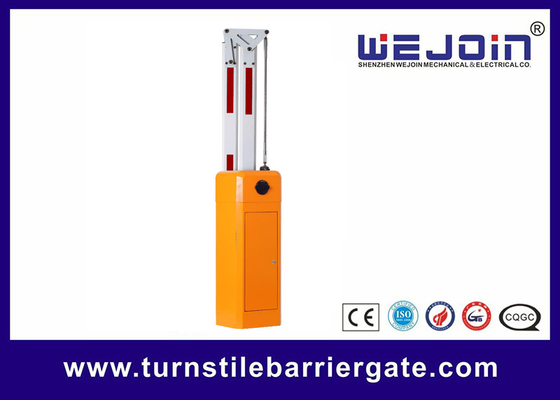

Most affordable intelligent 180-degree folding arm security boom barrier
Product information
The intelligent barrier gate is one type of our company’s products with the latest technological design to realize automatic and intelligent operation. Furthermore, the unique clutch device and the balance device have made the barrier gate become more reliable.
Functions & Features:
Manual release
Machine core with compression spring effectively avoids the accidents caused by spring break.
Die-casting aluminum alloy motor, precision, and good at thermal radiating.
Motor cooling fan, solving the problem of heat-protection
Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
reversing on an obstacle
Auto-closing
Support the infrared photocell for anti-bumping(optional)
Support for the external and internal vehicle loop detector
traffic light interface
Motor speed and boom type
|
Boom type |
Boom length (M) |
Opening time(S) |
|
Straight boom |
6M≥L＞4.5M |
6S |
|
4.5M≥L＞3M |
3S |
|
|
3M≥L |
1.5S |
|
|
Articulated boom, 90 degree |
5M≥L＞3M |
6S |
|
3M≥L |
3S |
|
|
Articulated boom, 180 degree |
5M≥L＞3M |
6S |
|
3M≥L |
3S |
Working environment and data
1. Mechanism temperature: -25℃+85℃
2. Control board temperature: -20+85℃
3. Voltage: 220V±10%, 50HZ or 110V ±10%, 60HZ
4. Rated power: 120W
5. Relative humidity: ≤90%
6. Distance of remote control: 100M＞L≥30M in the open place
7. Net weight: 60 Kg
