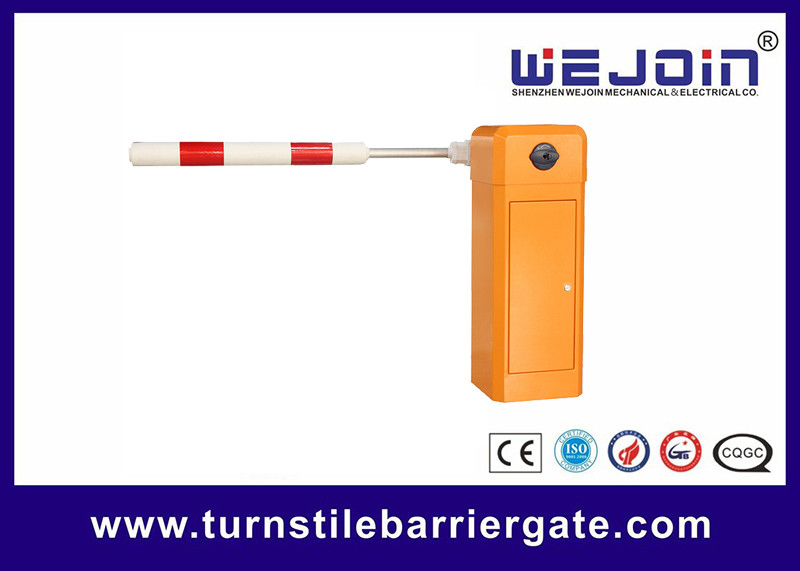

Auto-reverse security automatic straight round boom barrier with RFID
Motor speed and boom type
| Boom type | Boom length (M) | Opening time(S) | Height between boom and ground(M) |
|
Straight boom |
6M≥L＞4.5M | 6S |
H=0.8M |
| 4.5M≥L＞3M | 3S | ||
| 3M≥L | 1.5S | ||
| 90-degree boom | 5M≥L＞3M | 6S | |
| 3M≥L | 3S | ||
| 180-degree boom | 5M≥L＞3M | 6S | |
| 3M≥L | 3S | ||
|
Two fence boom |
4.5M≥L | 6S |
H=0.9M |
|
Three fence boom |
4M≥L | 6S | H=1.5M |
Product data
1. Working temperature (motor): -35℃- ~ + 60℃
2. Working temperature (control panel): -35℃- ~ + 60℃
3. Voltage: 220V±10%, 50HZ or 110V ±10%, 60HZ
4. Rated Power: 80W, capacitor: 9+9uF / 450W
5. Humidity: ≤90% RH
6. Distance of remote control: 100M＞L≥30M in the open place
Common malfunction and handling
1. The boom has no reaction though the motor is running
Solution: check whether the clutch is lock
2. The boom vibrates too much at its limit position
a. check whether the shock absorption is broken
b. check whether the spring is broken
