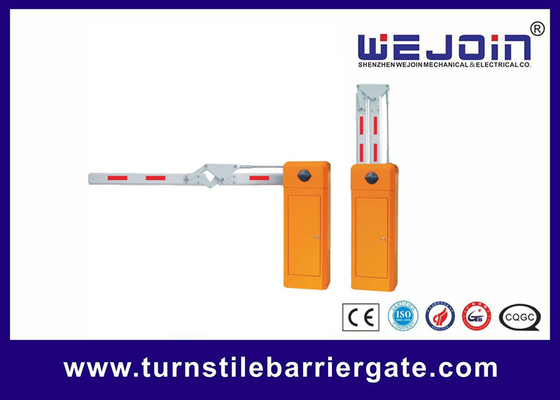

AC Motor Automatic Barrier Gate for Freeway and Parking Lot
Technical Data
|
Model |
102-11 |
102-118 |
102-13 |
102-16 |
102-23 |
102-26 |
102-33 |
102-36 |
102-46 |
102-56 |
|
Running time |
1 sec |
1.8 sec |
3 sec |
6 sec |
3 sec |
6 sec |
3 sec |
6 sec |
6 sec |
6 sec |
|
Boom type |
Straight |
90° folding |
180° folding |
2 fencing |
3 fencing |
|||||
|
Max Boom length |
3m |
4m |
4.5m |
6m |
3m |
5m |
3m |
5m |
4.5m |
4m |
|
Boom dimension (WxH)mm |
45*80mm |
45*100mm |
||||||||
|
Boom weight |
3.2 kg |
4.5kg |
5.2kg |
6.4 kg |
6.4 kg |
10 kg |
7.9 kg |
13.4 kg |
11.1 kg |
14 kg |
|
Voltage |
220V±10%, 110V±10% |
|||||||||
|
Frequency |
50/60HZ |
|||||||||
|
Motor voltage |
AC220V/110V |
|||||||||
|
Power |
80W |
|||||||||
|
Working Temperature |
-35℃~+75℃ |
|||||||||
|
Protection grade |
IP54 |
|||||||||
|
MTBF |
5000000 times |
|||||||||
Functions & Features
1. The moving parts and balance spring devices which are in their optimal function enable the boom to work with soft start slow stop in fast and stable, without impact, which reduces the driving power in maximum, extends its service lift.
2. Humanized anti-collision boom protection, when the vehicle accidentally hits the gate boom, the boom can be swung out to avoid damage to the vehicle and the barrier gate.
3. The dedicated controller system has high integration and strong logic performance. It can be connected to any highway and bridge, intelligent parking system.
4. 485 communication interface makes it easy to remote control the barrier gate and feedbacks its state.
5. High-sensitivity arm auto-reverse function. To prevent incorrect operation and other accidents like crashes or hitting.
6. High-strength precision cast steel, with outdoor metal powder electrostatic spraying surface treatment, IP class up to 54
WEJOIN Profile
Founded in March 2004, Shenzhen WEJOIN is a national high-tech enterprise specialized in R&D, production, and sales of intelligent access control products. It has nearly 200 patented technologies. Its main products including commercial barrier gate, high-grade & mid-grade & eco-grade DC variable-frequency barrier gate, flap barrier, tripod turnstile, swing barrier, speed gate, etc., are suitable for the entry and exit management of vehicles and personnel such as high-speed toll gate, commercial plaza, residential areas, stations, customs checkpoints, etc.
