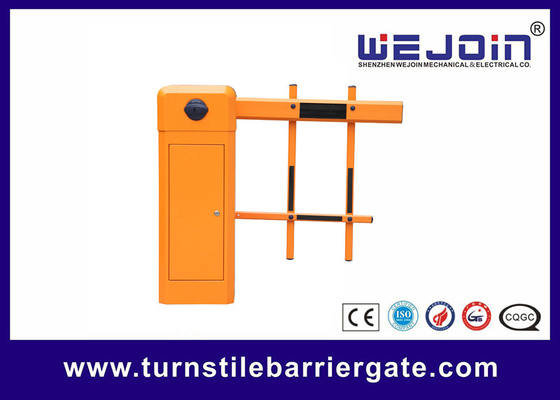

High-sensitivity arm auto reverse vehicle barrier gate
Technical Data
|
Model |
102-46 |
102-56 |
|
Running time |
6 sec |
6 sec |
|
Boom type |
2 fencing |
3 fencing |
|
Max Boom length |
4.5m |
4m |
|
Boom dimension (WxH)mm |
45*100mm |
|
|
Boom weight |
11.1 kg |
14 kg |
|
Voltage |
220V±10%, 110V±10% |
|
|
Frequency |
50/60HZ |
|
|
Motor voltage |
AC220V/110V |
|
|
Power |
80W |
|
|
Working Temperature |
-35℃~+75℃ |
|
|
Protection grade |
IP54 |
|
|
MTBF |
5000000 times |
|
Functions & Features
1. Manual advanced clutch, to rise up the boom by hand when power off, it will auto-reset when power on.
2. Adopts the compression spring for safety precaution to avoid the accidents caused by the spring broken.
3. Three buttons to control the boom to rise up or fall or stop.
4. Auto-reversing when meets obstacles.
5. Available for the internal and external loop detector.
6. Opening, closing, and stopping to control the interface.
7. Infrared photocell for anti-bumping.
8. RS485 communicational module to connect the computer.
9. Traffic lights interface.
10. Wire control and remote control.
11. Auto warming up when the system is below zero degrees centigrade.
Maintenance
Keep the barrier gate clean.
Check the joints every month in case of any loose parts.
