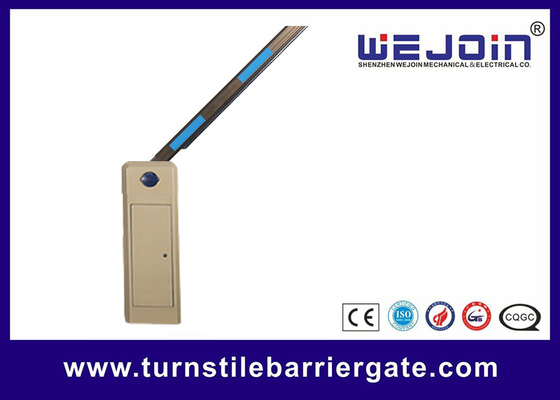

Aluminum Motor Parking Barrier Gate Manual Clutch 100W For Parking Lot System

1 unit
MOQ
negotiation
Price
Aluminum Motor Parking Barrier Gate Manual Clutch 100W For Parking Lot System
Features Gallery Product Description Request A Quote
Features
Specifications
Speed: 1S; 1.8S; 3S; 6S
Color: Orange, Gray, Black, Etc
Motor Material: Die-casting Aluminum Alloy
Housing Material: Steel
Max Boom Length: 8metes
COM Interface: RS485
Highlight:

Aluminum Motor Parking Barrier Gate

,

Manual Clutch Parking Barrier Gate

,

100W Parking Lot Barrier Gate

Basic Infomation
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ102
Payment & Shipping Terms
Packaging Details: Carton,wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units / Month
Trade Terms: EXW,FOB,CIF
Product Description

Security Automatic Parking Barrier Gate for Intelligent Parking Lot System



Barrier Gate Specification

Model type
DZ102 barrier gate
Materials
Aluminum alloy
Input power
220AC/AC110 50/60HZ
Duty cycle
100%
Rated power
100W
Housing size
35cmx28cmx107cm
Protection grade
IP65
Barrier weight
47kg
Motor temperature
-40℃ to 80℃
Remote control distance
≤30M
MTBF
5 million cycles
The height from the ground
90cm
Input Interface
+ 12V signal or pulse width 100MS pulse signal
Arm speed
3s/6s
Color
Conventional orange and gray support custom
Max boom length
6m



Parking Barrier Gate Features:

1. Manual advanced clutch, to rise up the boom by hand when power off, it will auto-reset when power on.

2. Adopts the compression spring for safety precaution to avoid the accidents caused by the spring broken.

3. Three buttons to control the boom to rise up or fall or stop.

4. Auto-reversing when meets obstacles.

5. Available for the internal and external loop detector.

6. Opening, closing, and stopping to control the interface.

7. Infrared photocell for anti-bumping.



WEJOIN Company

WEJOIN has strong innovation and R&D capabilities, ultra-high technology, and craftsmanship, leading the industry into the era of intelligent variable speed interconnection. On September 20, 2021, WEJOIN launched a 3D barrier gate that achieved ultra-high-speed operation in 3D space. This is the industry's first, disruptive innovation, and historic breakthrough, representing WEJOIN's superior technical capabilities. From the birth of the first integrated barrier gate in 2004 to the launch of the 3D barrier gate in 2021, WEJOIN has carried out seven major technological changes of the barrier gate in 18 years, leading the continuous development of technology in the industry.
